Insulated-Panel | Kingspan® | New | Quadcore® | Coldstore-Panel

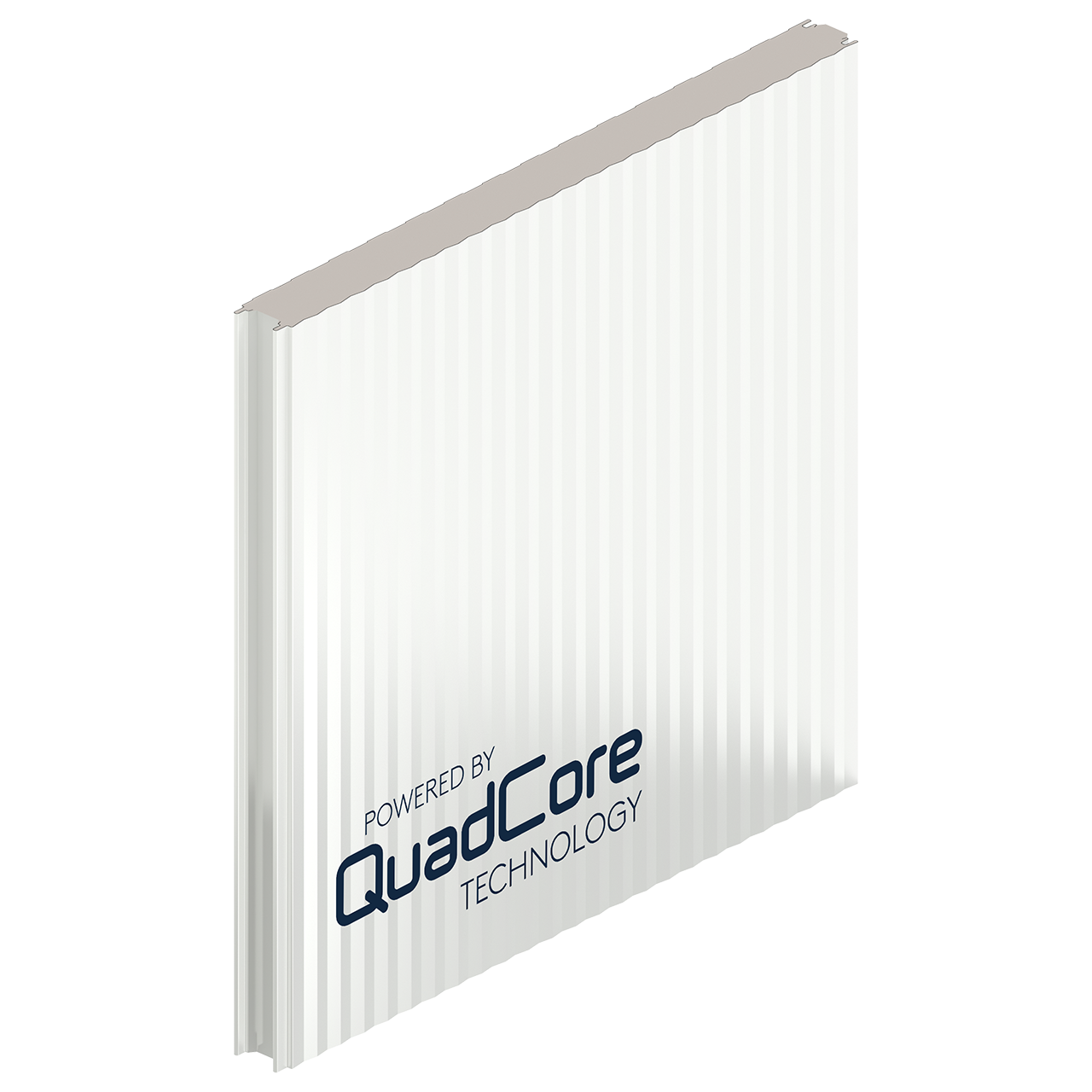

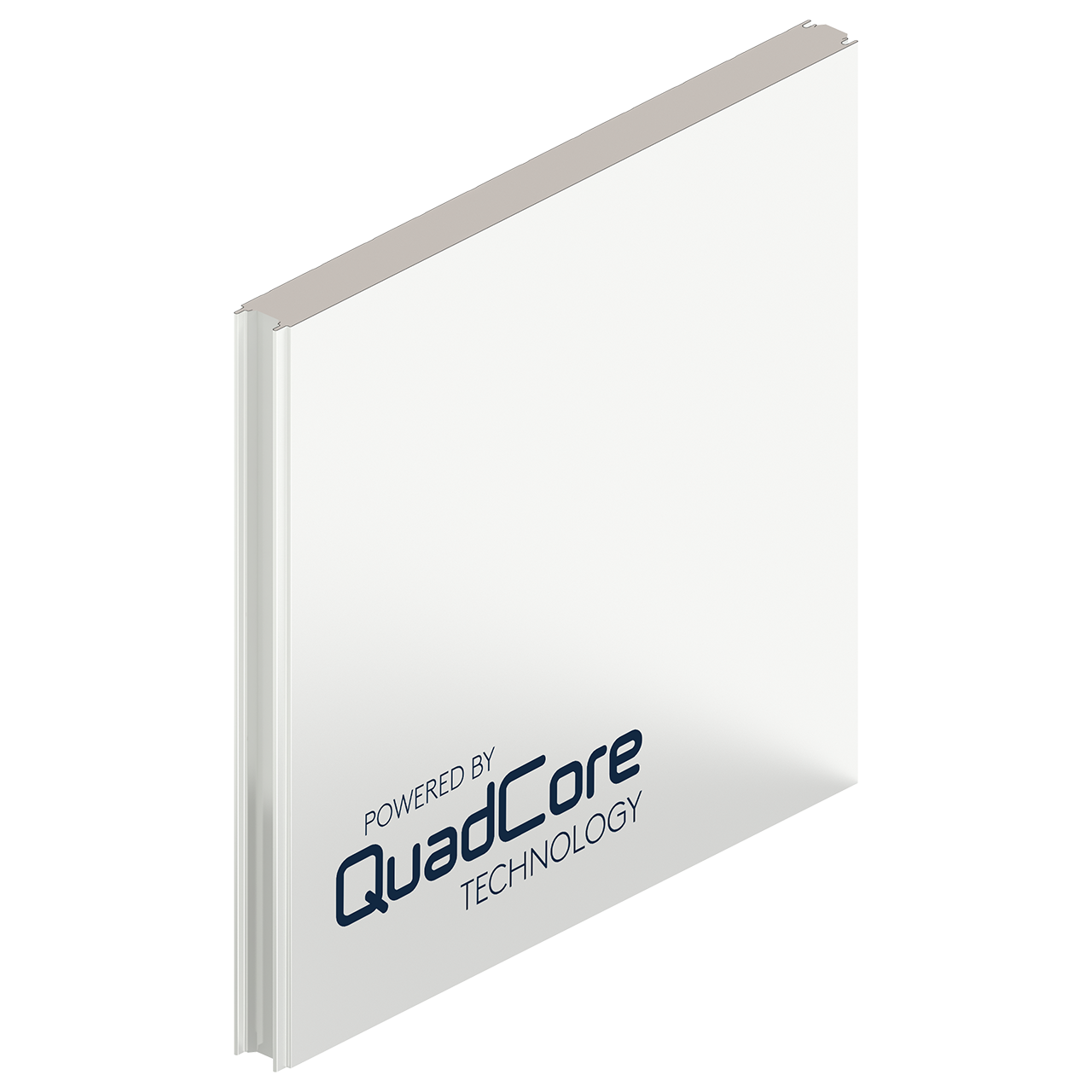

QuadCore Coldstore Panels are designed specifically for use within the food and drink industry in applications such as food manufacture and temperature-controlled storage. Insulated Panels for Temperature Controlled and Ambient Environments with a Temperature Range of -40°C to +60°C. Panels can also be used in standard building environment conditions. QuadCore® Coldstore Panels can be laid vertically or horizontally and are suitable for internal and external applications.

LARGE ORDER DISCOUNTS AVAILABLE

MCS Roofing & Cladding Supplies is a family run business and we pride ourselves on providing excellent customer service. If you would like any help or assistance, please don’t hesitate to call us on 01538 398 708 or email info@mcsroofing.co.uk where our friendly team will be waiting to help you.

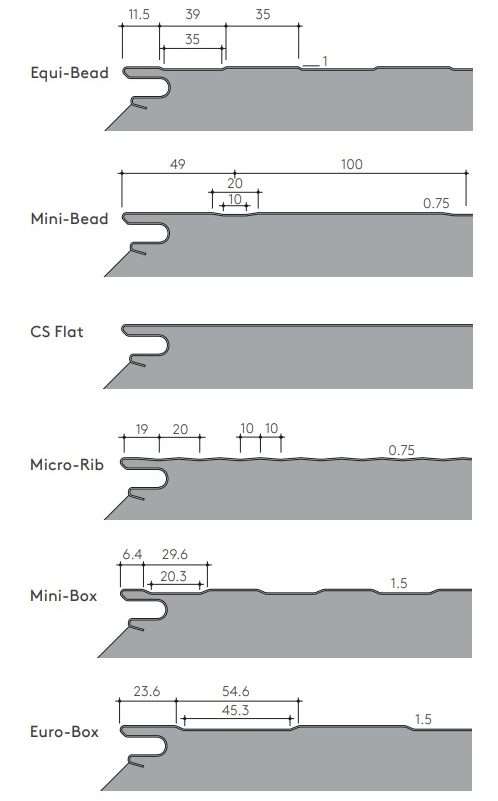

Profile Dimensions

Profile OPTIONS

Available COATINGS

External Weather Sheet:	XL Forté
External Weather Sheet:	Spectrum
Internal Liner Sheet:	CLEANsafe 15/25/55/120
Internal Liner Sheet:	AQUAsafe 55

Available SIZES

Cover Width:	600mm to 1200mm
Standard Lengths:	1800mm – 14500mm
Longer Lengths (Non Standard):	14500mm – 21000mm
Shorter Lengths (Non Standard):	<1800mm

Note: Additional costs and transport restrictions may apply for non-standard
lengths. All lengths may change for export (outside of the UK & Ireland).

DIMENSIONS, WEIGHT & THERMAL PERFORMANCE

Core Thickness:	U-Value (W/m2K):	Weight (kg/m2):
50mm	0.38	10.1
60mm	0.31	10.5
80mm	0.23	11.2
100mm	0.18	12
125mm	0.15	12.9
150mm	0.12	13.9
175mm	0.10	14.8
200mm	0.09	15.8
220mm	0.08	16.5

Notes: These values are in accordance with BS EN 14509, calculated using Finite Element Analysis, and take into account any thermal bridging through
the longitudinal joint. Shaded area denotes typical thicknesses for temperature controlled applications. The U-values have been calculated using an aged
thermal conductivity value of 0.018 W/mK.

INSTALLATION Video

DOWNLOADS & DATASHEET LINKS

Kingspan Colours & CoatingS BROCHURE

KINGSPAN COLDSTORE PANEL BROCHURE

Kingspan INSTALLATION GUIDE FOR HORIZONTAL AWP

KINGSPAN INSTALLATION GUIDE FOR VERTICAL aWP

Click links to view
