Insulated-Panel | Kingspan® | New | Quadcore® | Louvre-Wall-Panel

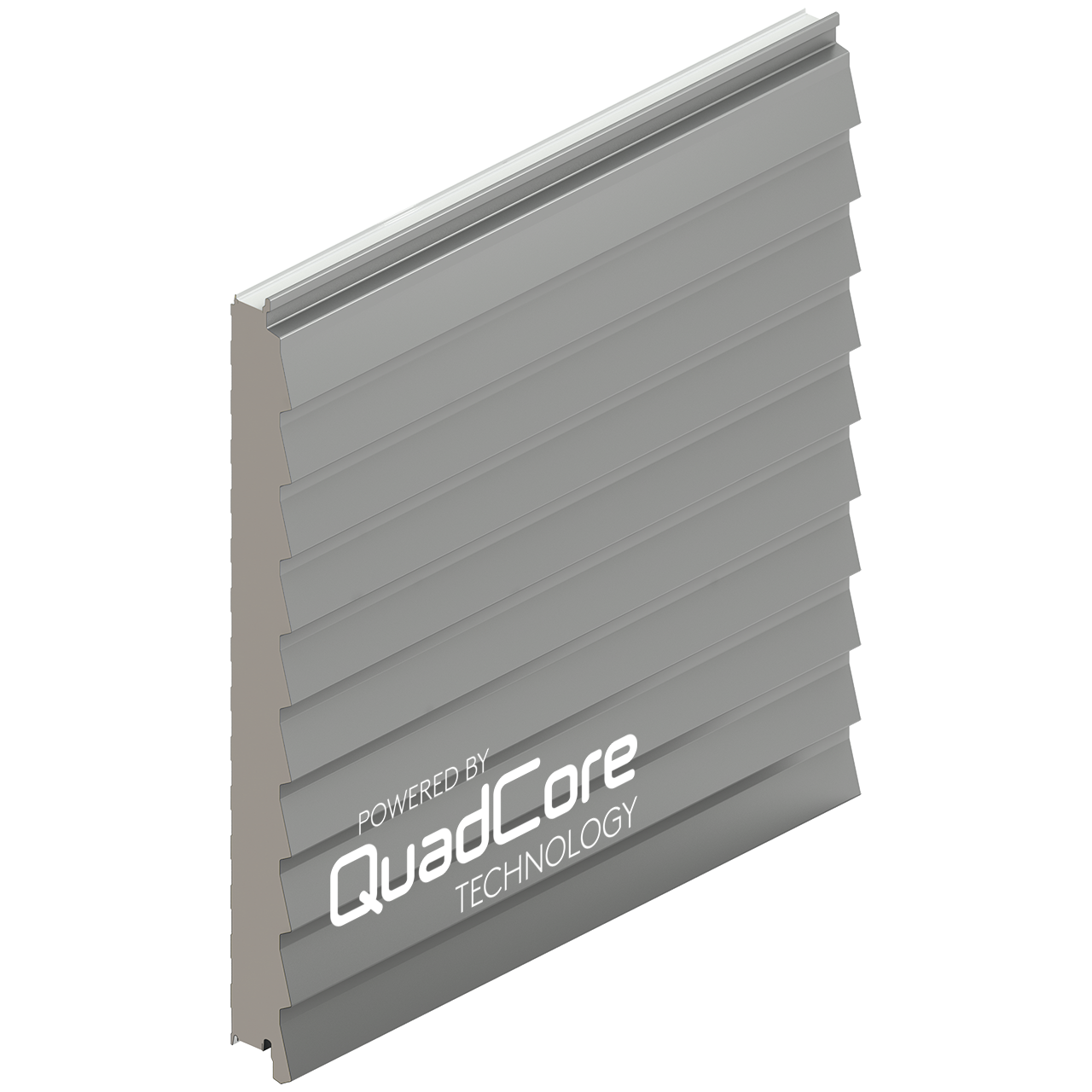

With its distinctive fins, QuadCore Louvre Wall Panel forms facades which are stylish and clean cut. Powered by QuadCore Technology, they can create a lasting visual impression whilst helping to lower the carbon footprint of a building. Suitable for both vertical and horizontal applications in lengths from 1800mm – 19200mm. Available in 1000mm cover width.

LARGE ORDER DISCOUNTS AVAILABLE

MCS Roofing & Cladding Supplies is a family run business and we pride ourselves on providing excellent customer service. If you would like any help or assistance, please don’t hesitate to call us on 01538 398 708 or email info@mcsroofing.co.uk where our friendly team will be waiting to help you.

Profile Dimensions

Available Coatings

External Weather Sheet:	Kingspan Spectrum
External Weather Sheet:	Kingspan XL Forté
Internal Liner Sheet:	CLEANsafe 15/120
Internal Liner Sheet:	AQUAsafe 55

Available sizes

Cover Width:	1000mm
Standard Lengths:	1200mm – 14500mm
Longer Lengths (Non Standard):	14500mm – 19200mm
Shorter Lengths (Non Standard):	<1200mm

Note: Additional costs and transport restrictions may apply for non-standard
lengths. All lengths may change for export (outside of the UK & Ireland).

DIMENSIONS, WEIGHT & THERMAL PERFORMANCE

Core Thickness:	Overall Thickness:	U-Value (W/m2K):	Weight (kg/m2):
45mm	63mm	0.43	10.8
54mm	72mm	0.35	11.2
60mm	78mm	0.31	11.4
70mm	88mm	0.27	11.8
74mm	92mm	0.25	11.9
80mm	98mm	0.23	12.1
90mm	108mm	0.20	12.5
100mm	118mm	0.18	12.9
120mm	138mm	0.15	13.7
140mm	158mm	0.13	14.4
150mm	168mm	0.12	14.8

The QuadCore® insulation used in QuadCore® Louvre Wall Panel has a Thermal Conductivity (λ) of 0.018W/m.K. QuadCore® Louvre Wall Panel has a Thermal Transmittance (U-Value), calculated using the method required by the Building Regulations Part L2 (England & Wales), Building Standards Section 6 (Scotland), Part L (Republic of Ireland) and Part F2 (Northern Ireland).

INSTALLATION Video

DOWNLOADS & DATASHEET LINKS

Kingspan Colours & CoatingS BROCHURE

KINGSPAN LOUVRE PANEL BROCHURE

Kingspan INSTALLATION GUIDE FOR HORIZONTAL AWP

KINGSPAN INSTALLATION GUIDE FOR VERTICAL aWP

Click links to view
