Flat faced eaves beams are a purpose-designed profile for use as an eaves-purlin, top sheeting rail and gutter support.
All the eaves beams have been designed to cater for spans up to 12000mm long, with an angled top flange available from 0° to 25°. Holes can be plain, or counter-formed to suit fixing requirement. Stiffening cleats available, and packer plates available for use with counter-formed holes.
The size of each bay and the end-to-end span of the building, coupled with load factors will determine the specification of eaves beam required.
LARGE ORDER DISCOUNTS AVAILABLE
MCS Roofing & Cladding Supplies is a family run business and we pride ourselves on providing excellent customer service. If you would like any help or assistance, please don’t hesitate to call us on 01538 398 708 or email info@mcsroofing.co.uk where our friendly team will be waiting to help you.
WHAT we need
- Bay size (centre to centre)
- Length of building
- Roofing system (single Skin, fibre Cement, insulated panel, core thickness etc)
- Roof Pitch
- Purlin span
- Purlin overshoot at the gable-ends?
- Plain or punched (holes)?
SPECIFICATION
| Size | Gauge | Roof Pitch | Length |
| 190mm | 2mm | 0° to 25° | Up to 12000mm |
| 235mm | 2mm | 0° to 25° | Up to 12000mm |
| 265mm | 2mm | 0° to 25° | Up to 12000mm |
| 265mm | 2.5mm | 0° to 25° | Up to 12000mm |

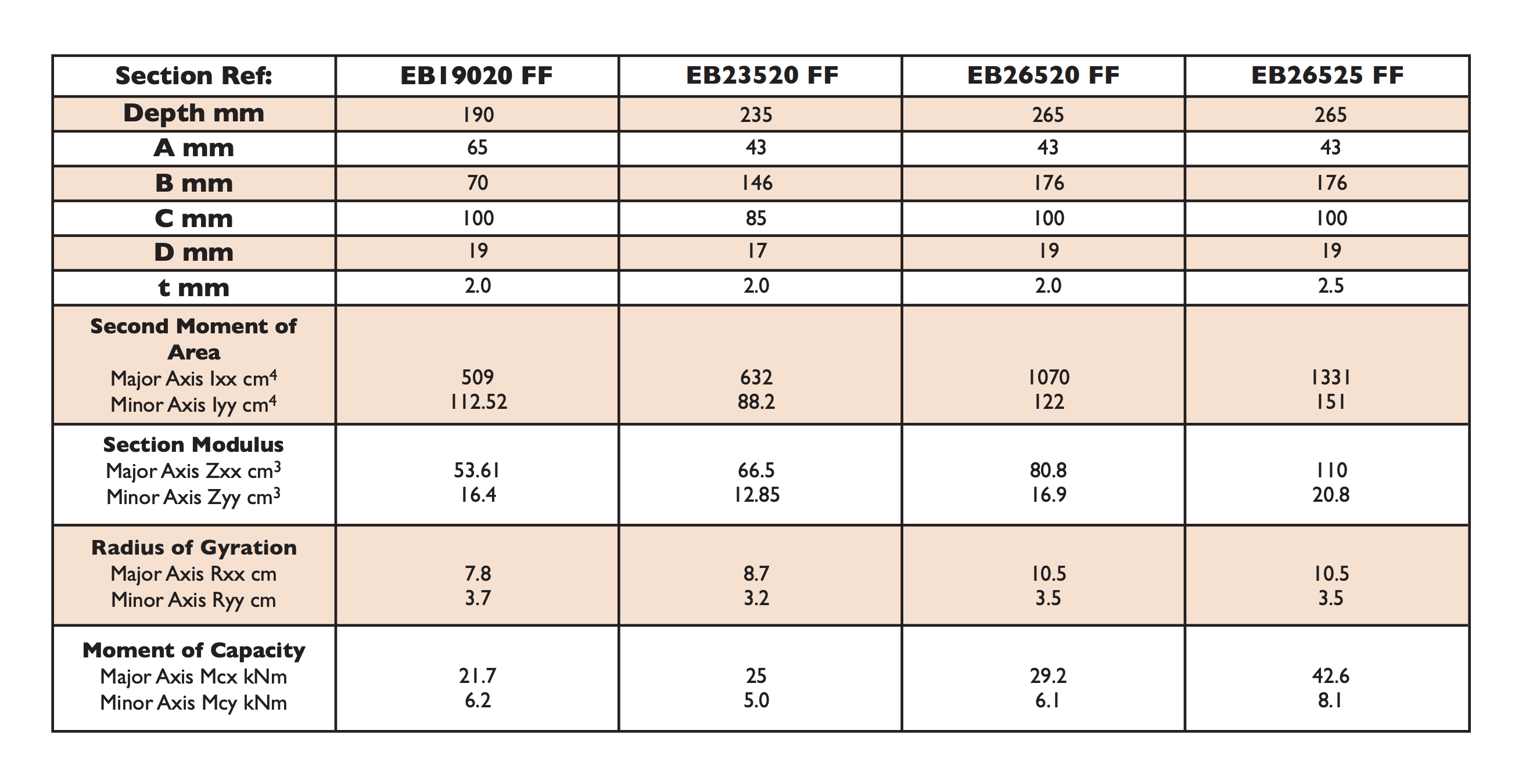

PROPERTIES
PRODUCT RANGE
