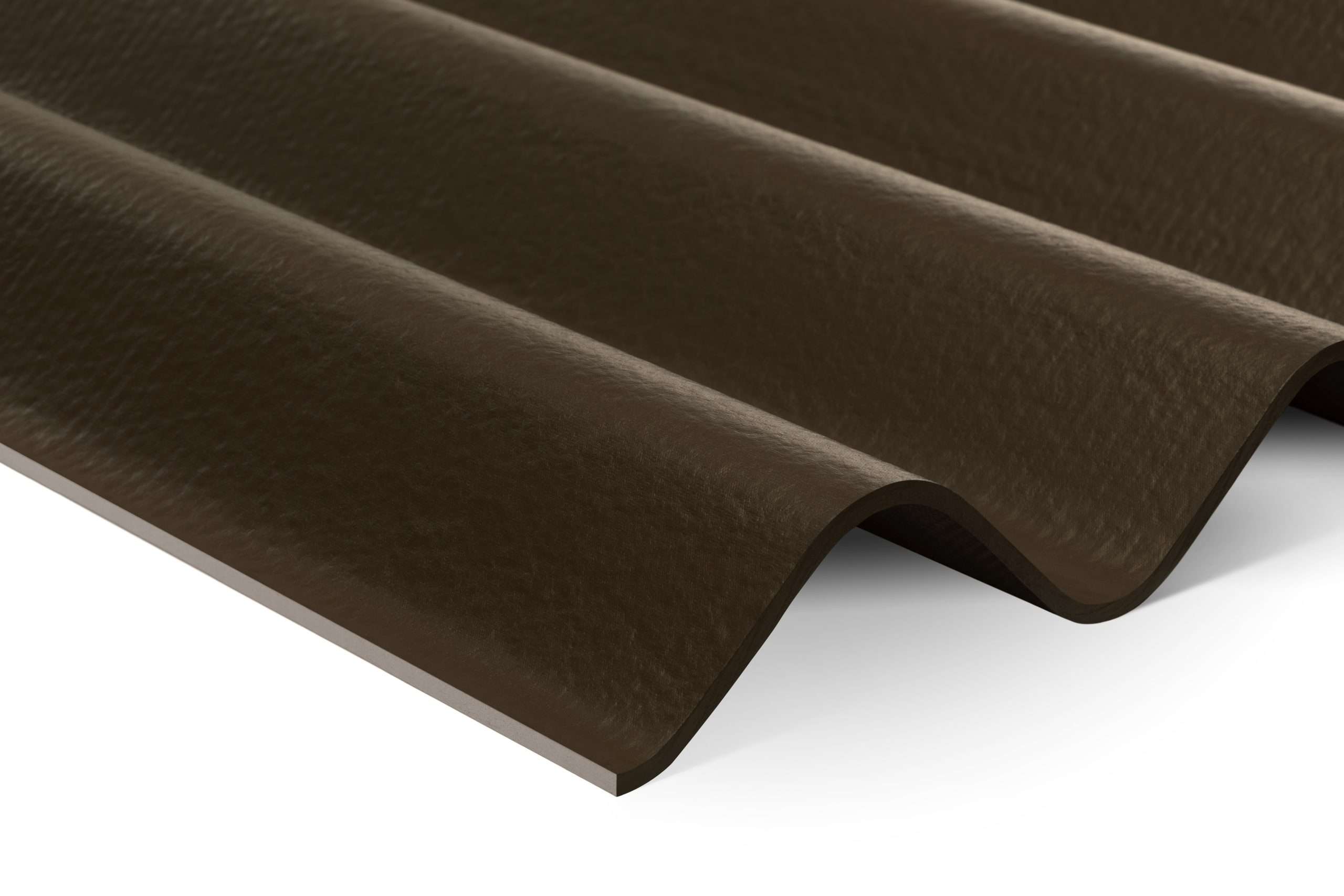

Swisspearl (Cembrit) Cemsix fully compressed fibre cement sheet – the traditional 6 inch profile – can be used on new buildings and as a replacement sheet for existing farm and equestrian buildings, already incorporating 6 inch profile. Cemsix sheeting is the ideal material for all single skinned agricultural and equestrian buildings.
Cemsix fully compressed corrugated sheets are denser than semi compressed alternatives and better able to withstand abrasion and wear.
Available in natural grey, “low sheen” or with Swisspearl’s 3-part coloration process in 3 colours, laurel green, blue black and vandyke brown the whole Cemsix system is covered by BBA Agrément Certificate 03/4049 and is guaranteed for 30 years’ durability and 10 years’ colour stability.
Cemsix ventilation accessories have been designed to accommodate differing approaches to ventilation according to the produce the building will be used for. The ventilation options allow compliance with the latest requirements for animal welfare.
In addition to over 100 years’ experience manufacturing fibre reinforced cement roofing and cladding products, Cemsix comes with all the product quality and environmental management accreditations you would expect. Swisspearl corrugated sheets is a high-quality fibre cement product used as roofing and cladding on agricultural and industrial buildings.
Colour Disclaimer. Please note that although we do our best to make sure that the colours displayed on our website are accurate, the actual colours may vary due to inconsistencies with display monitors.
LARGE ORDER DISCOUNTS AVAILABLE
MCS Roofing & Cladding Supplies is a family run business and we pride ourselves on providing excellent customer service. If you would like any help or assistance, please don’t hesitate to call us on 01538 398 708 or email info@mcsroofing.co.uk where our friendly team will be waiting to help you.
COLOUR RANGE
- Natural Grey

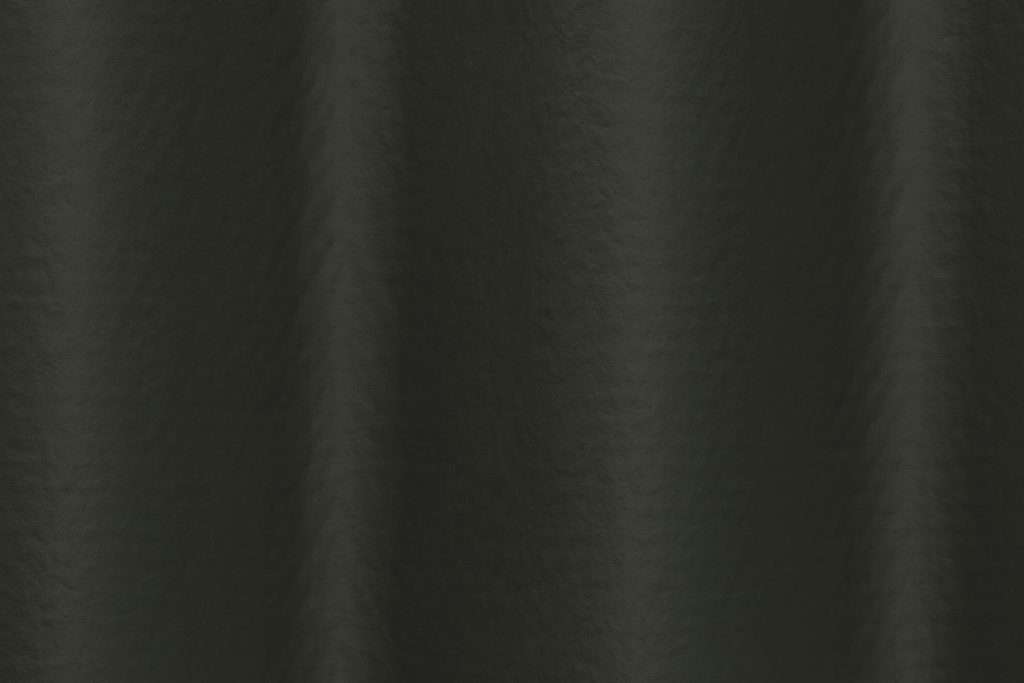

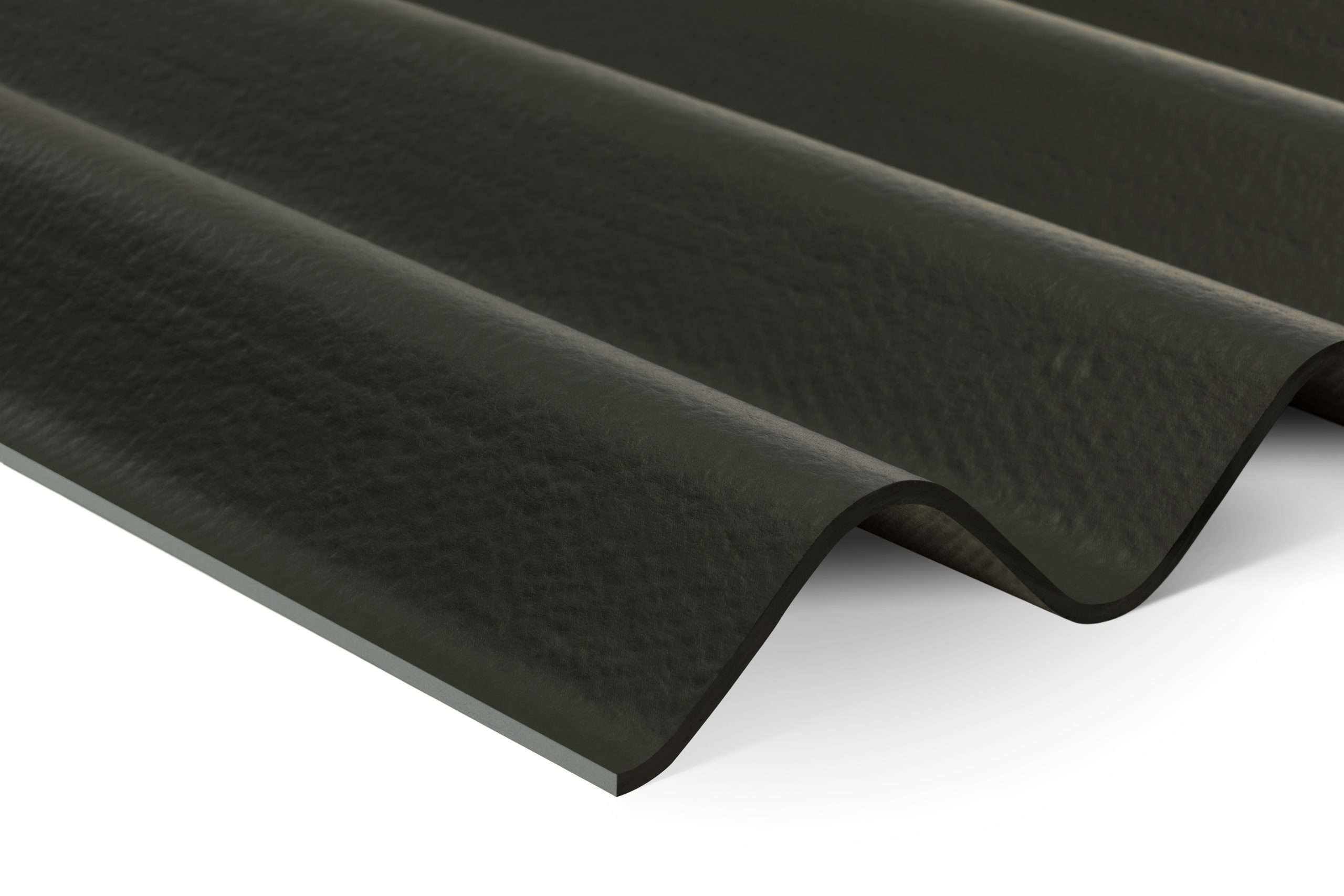

- Laurel Green

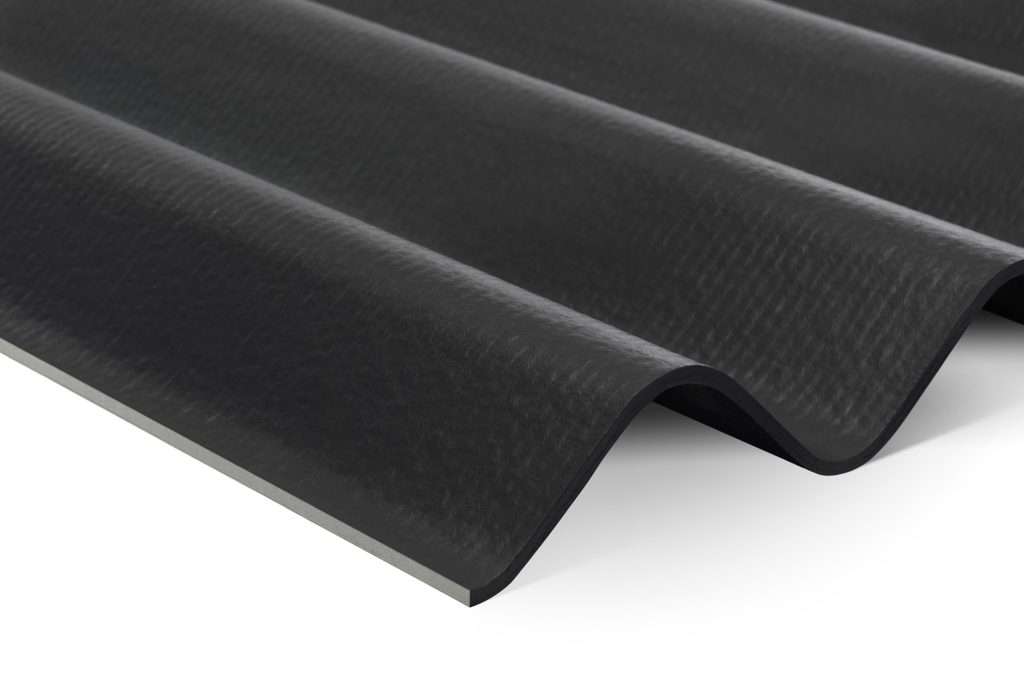

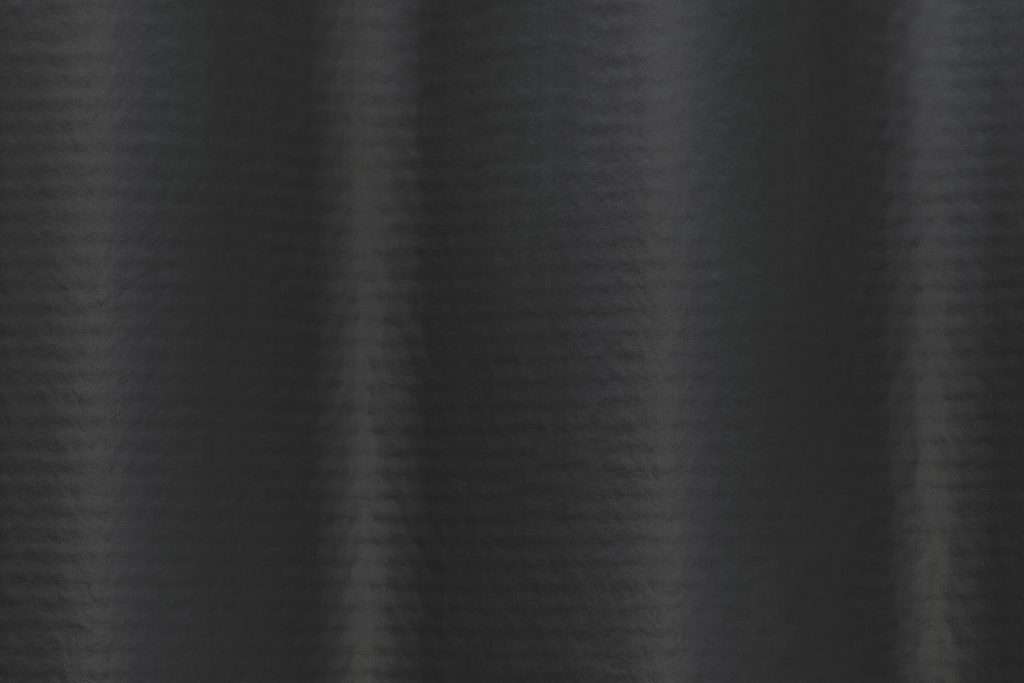

- Blue Black

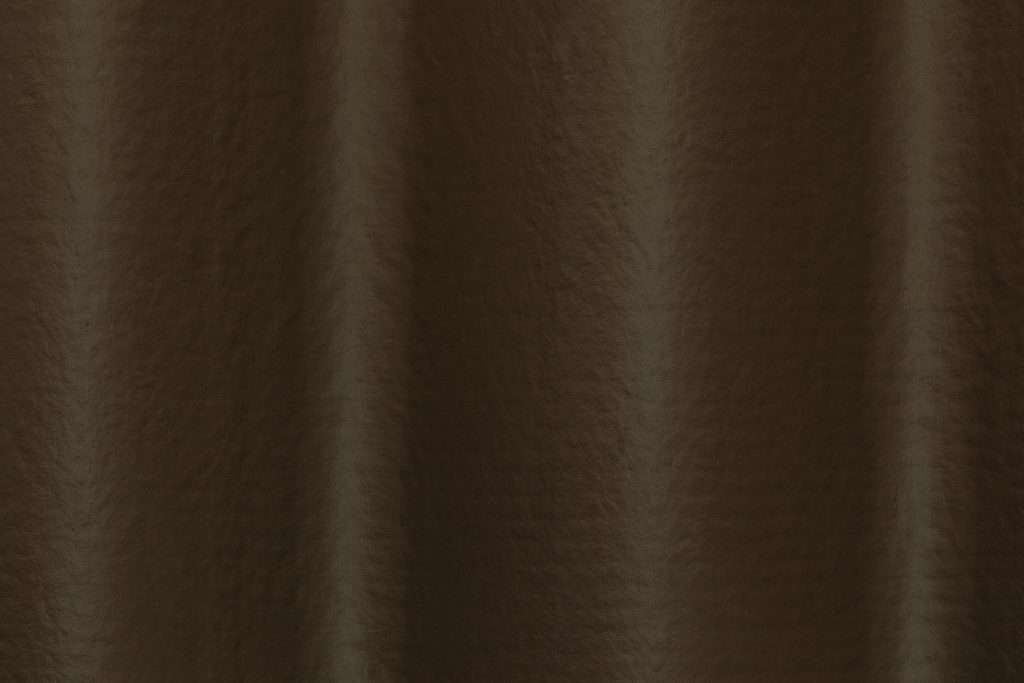

- Vandyke Brown
overview
- Material: Fibre cement
- Coating and surface: Water-based acrylic paint
- Fire protection class: A2 – s1, d0 (painted) A1 (for Natural Grey unpainted)
- Mechanical strength: Class C1X
- Avg SQM weight: 13.9 kg
- Fixing: Steel or timber with self-drilling screws
AVAILABLE SHEET LENGTHS
| Length (mm) | Length (ft) | Weight (kg) |
| 1375 | 4’6″ | 20.78 |
| 1525 | 5′ | 23.05 |
| 1675 | 5’6″ | 25.32 |
| 1825 | 6′ | 27.58 |
| 1975 | 6’6″ | 29.85 |
| 2125 | 7′ | 32.12 |
| 2275 | 7’6″ | 34.39 |
| 2440 | 8′ | 36.88 |
| 2600 | 8’6″ | 39.30 |
| 2750 | 9′ | 41.57 |
| 2900 | 9’6″ | 43.83 |
| 3050 | 10′ | 46.1 |
| 3660 | 12′ | 55.32 |
TECHNICAL DATA
| Overall Width: | 1086mm |
| Net Covering Width: | 1016mm |
| Thickness: | 6.0mm |
| Depth of Profile: | 54mm |
| Pitch of Corrugations: | 146.5mm |
| Side Lap: | 70mm |
| Minimum End Lap: | 150mm |
| Maximum Purlin Centres: | 1375mm |
| Maximum Rail Centres: | 1825mm |
| Maximum Unsupported Overhang: | 350mm |
| Minimum Roof Pitch: | 5° |
| Density (nominal): | 1700kg/m3 |
| Approximate weight of roof as laid, with 150mm end laps, single skin, including fixings: | 17kg/m2 |
CEMSIX CRANKED CROWN RIDGE

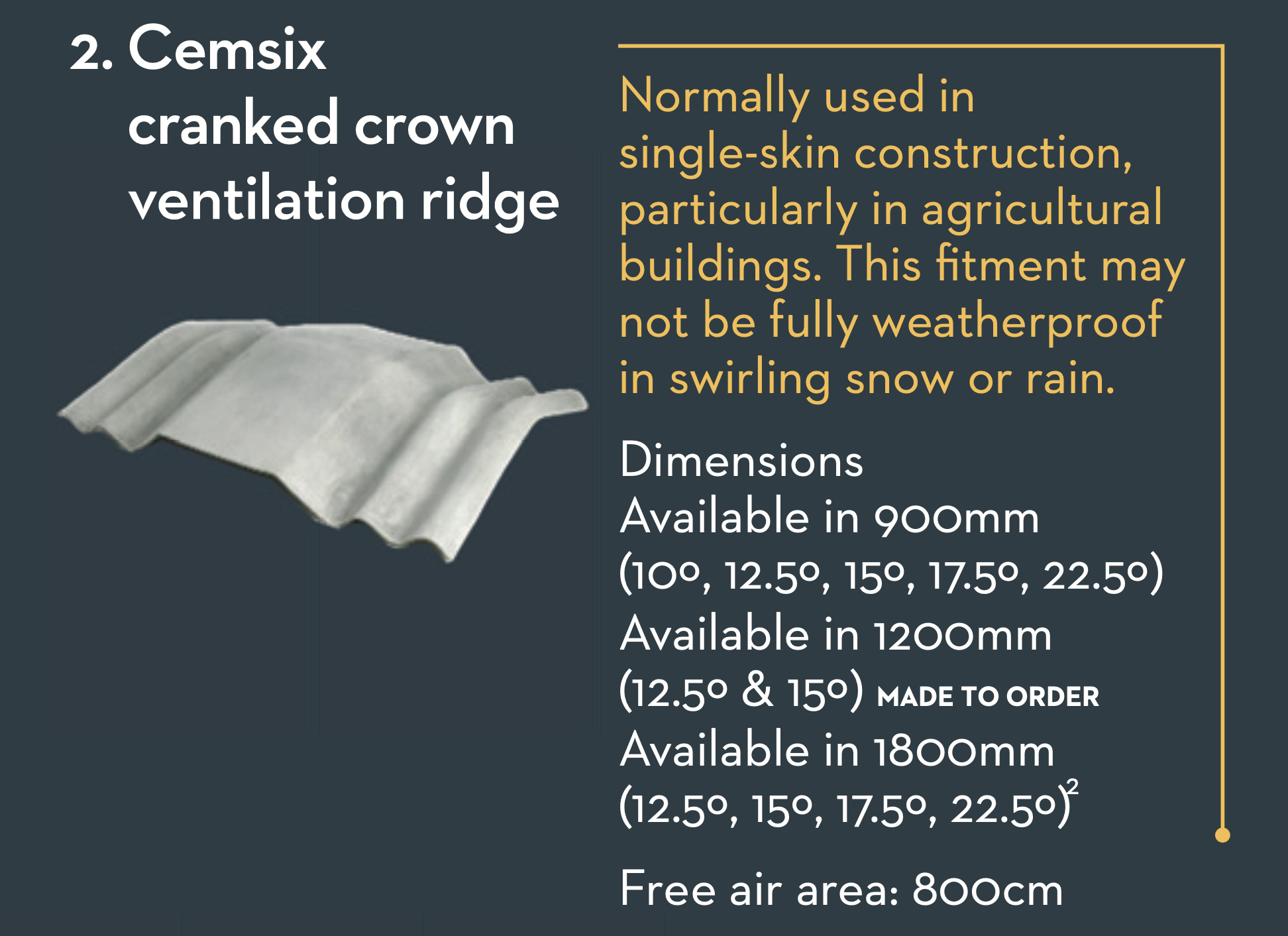

CEMSIX CRANKED CROWN VENTILATION RIDGE
CEMSIX TWO PIECE CLOSE FITTING RIDGE

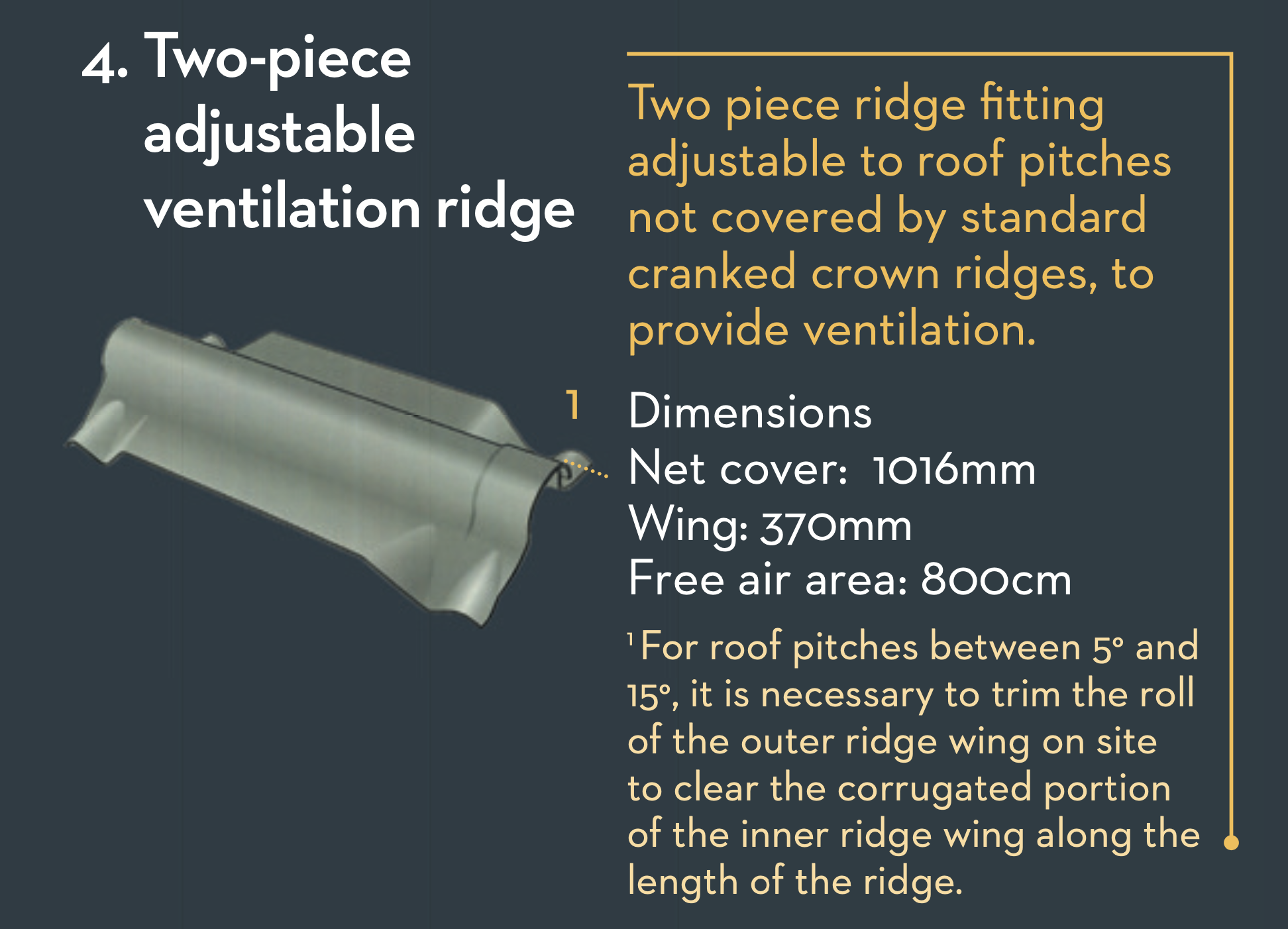

TWO pIEce adjustable ventilation ridge

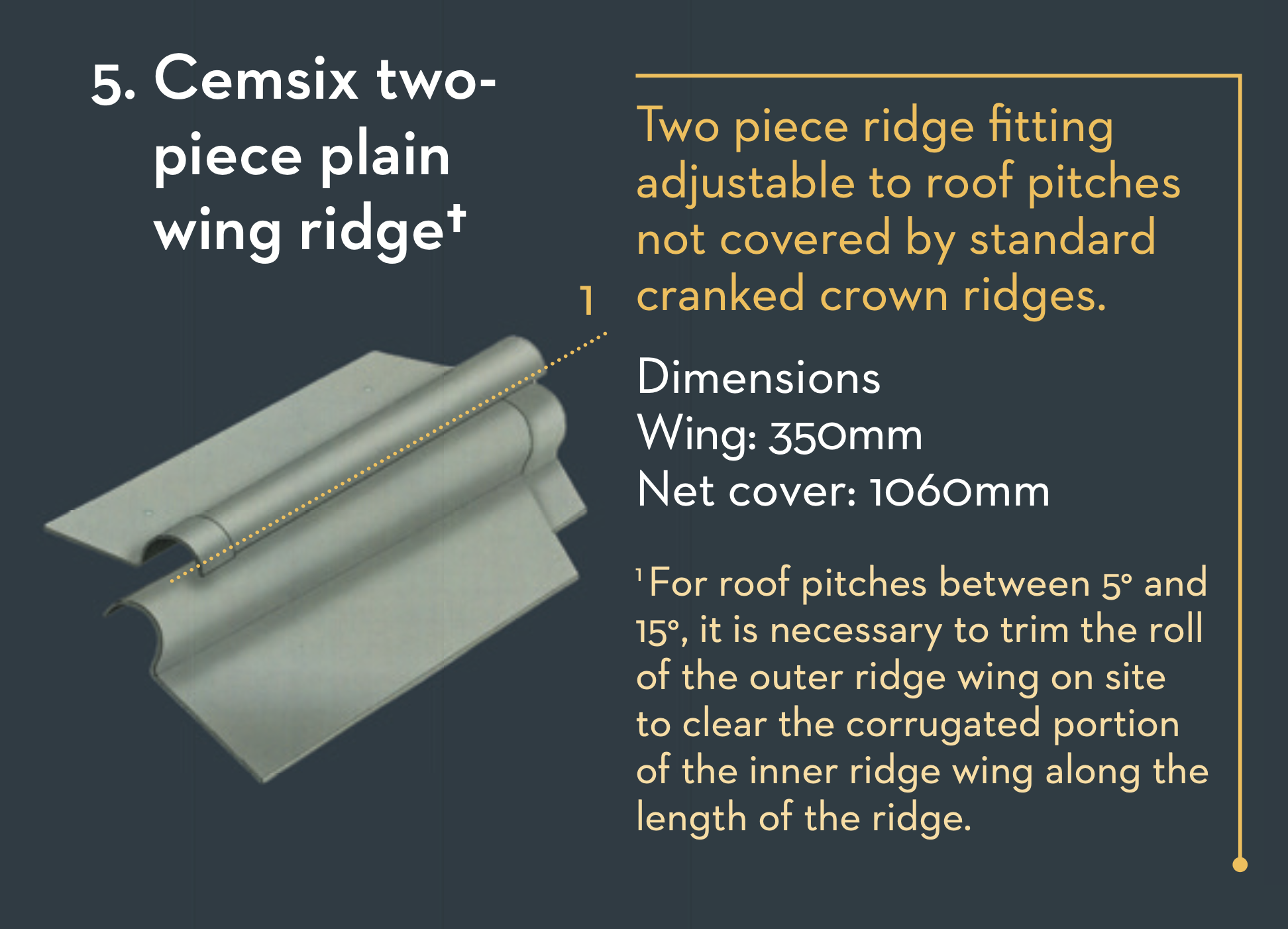

CEMSIX two piece plain wing ridge

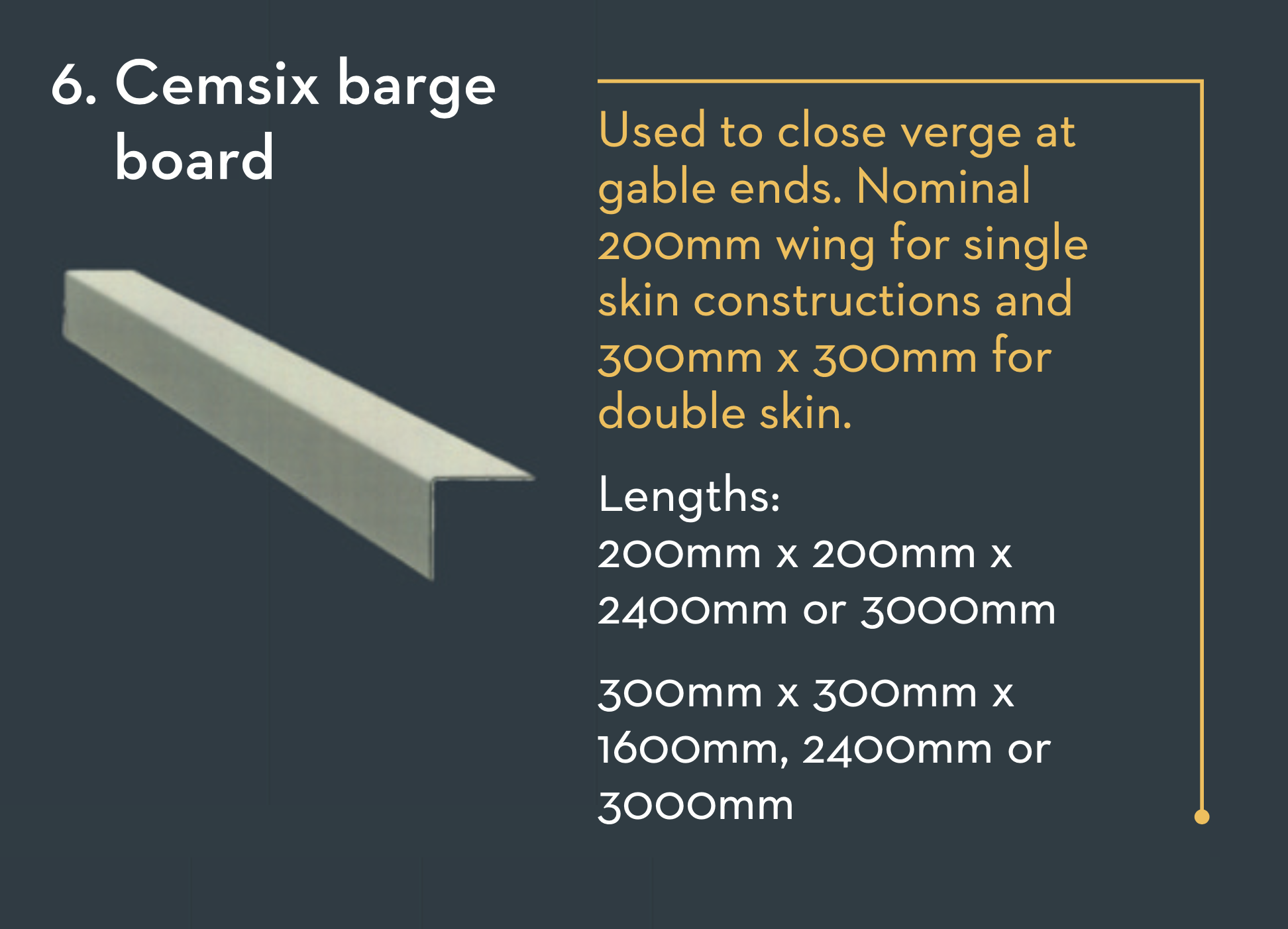

CEMSIX barge board
CEMSIX rolltop bargeboard

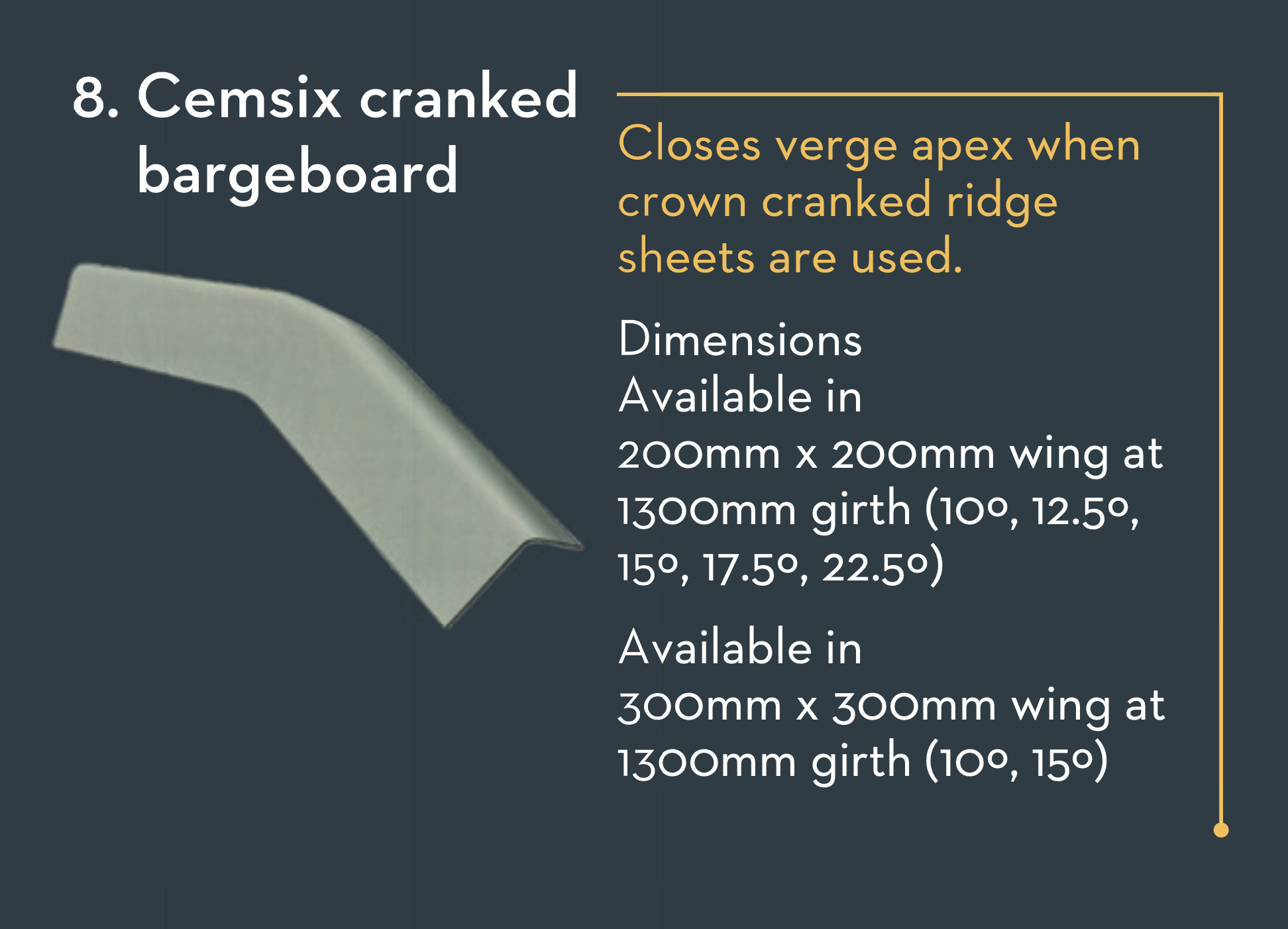

CEMSIX CRANKED bargeboard

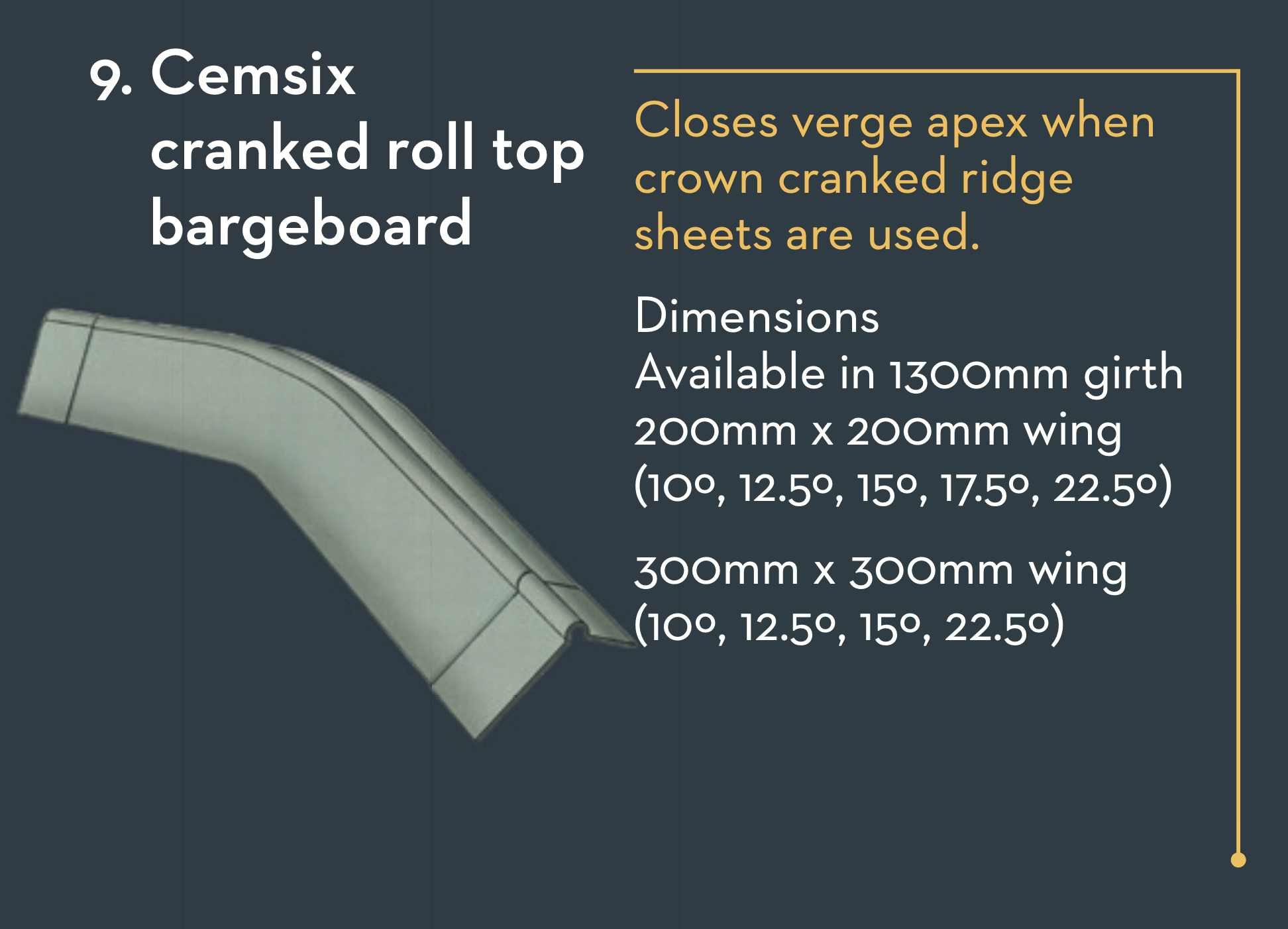

CEMSIX CRANKED Roll top bargeboard

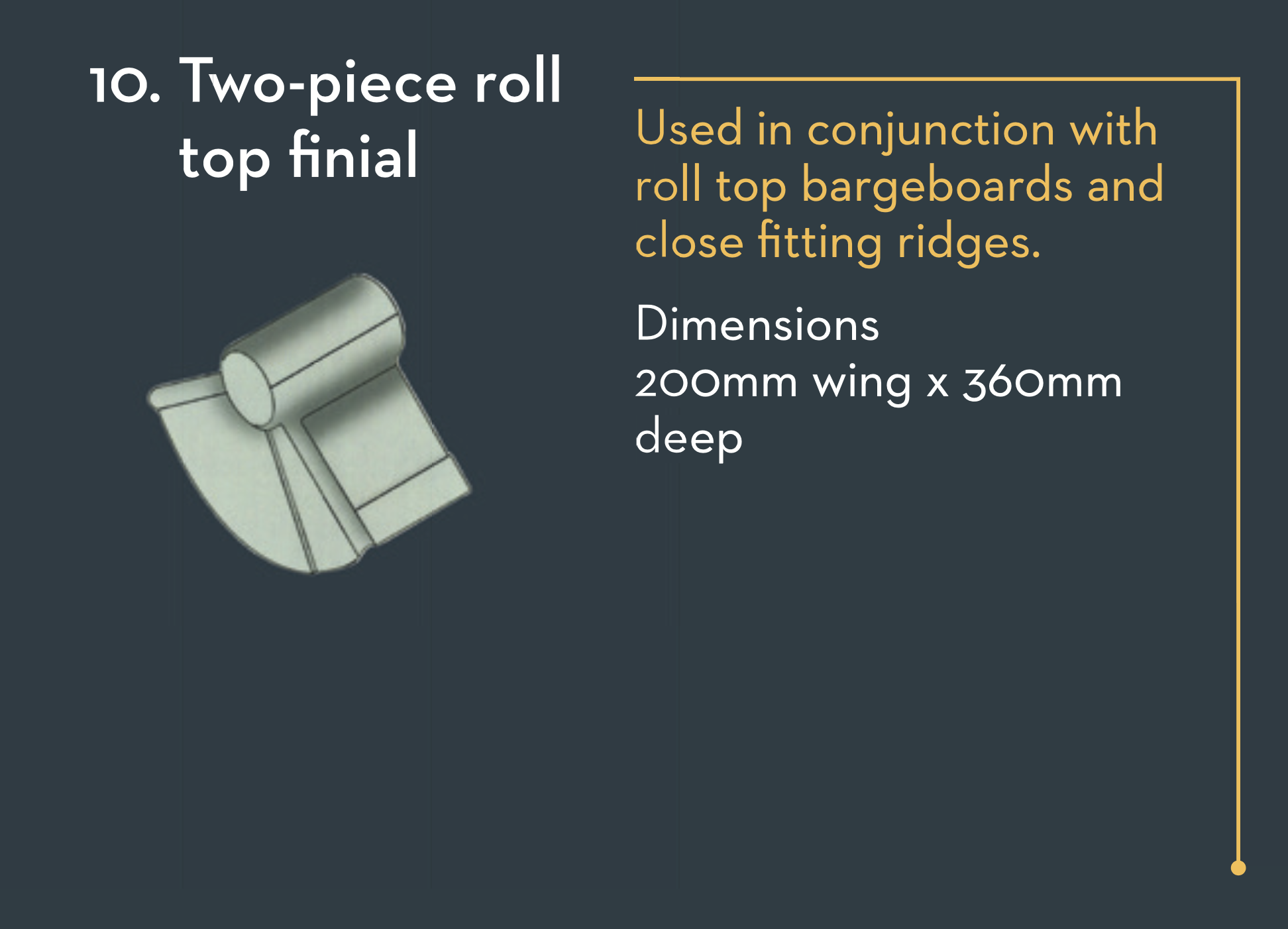

Two piece roll top finial

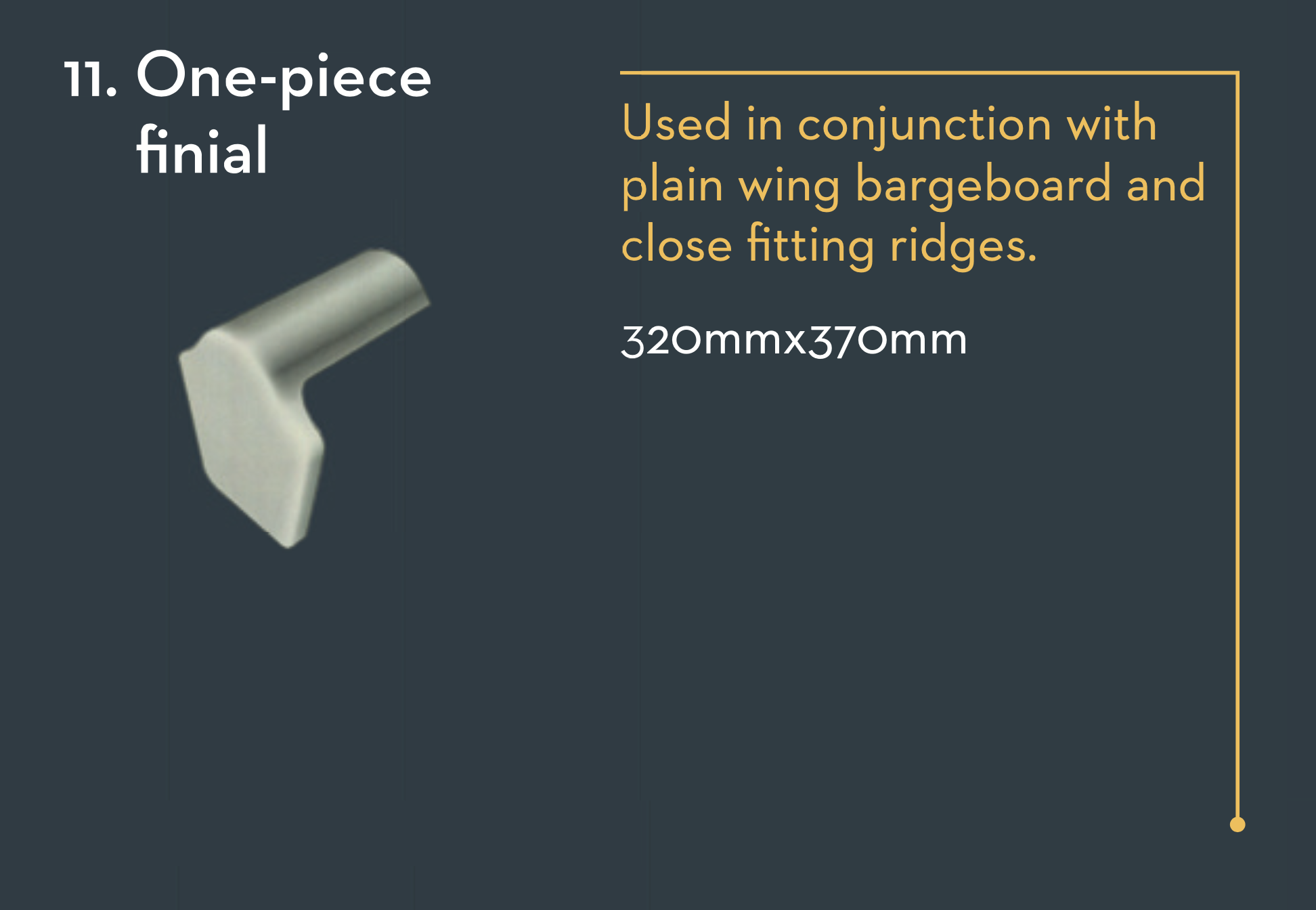

One piece finial

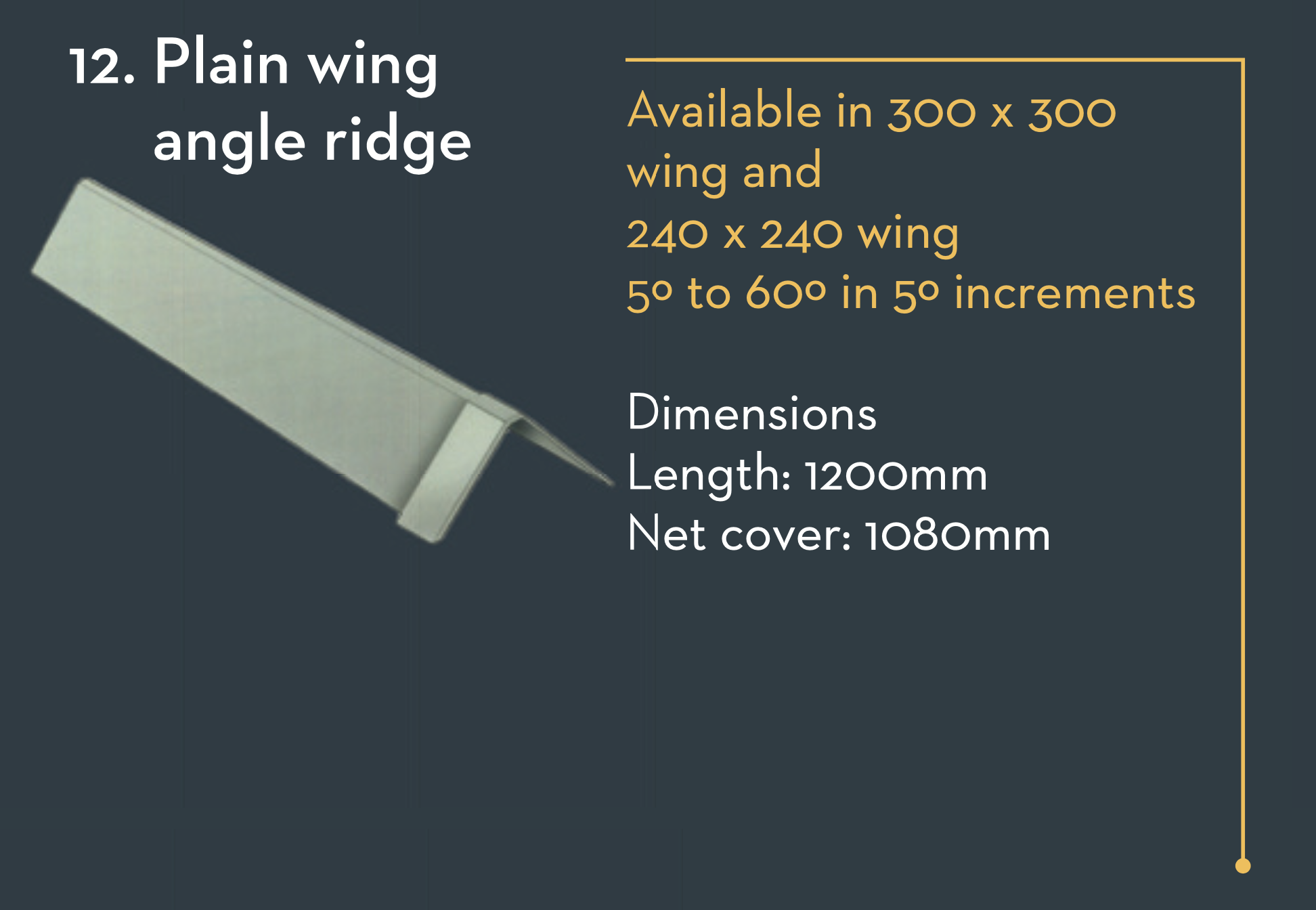

Plane wing angle ridge
CEMSIX apron flashing pIECE
CEMSIX eaves filler

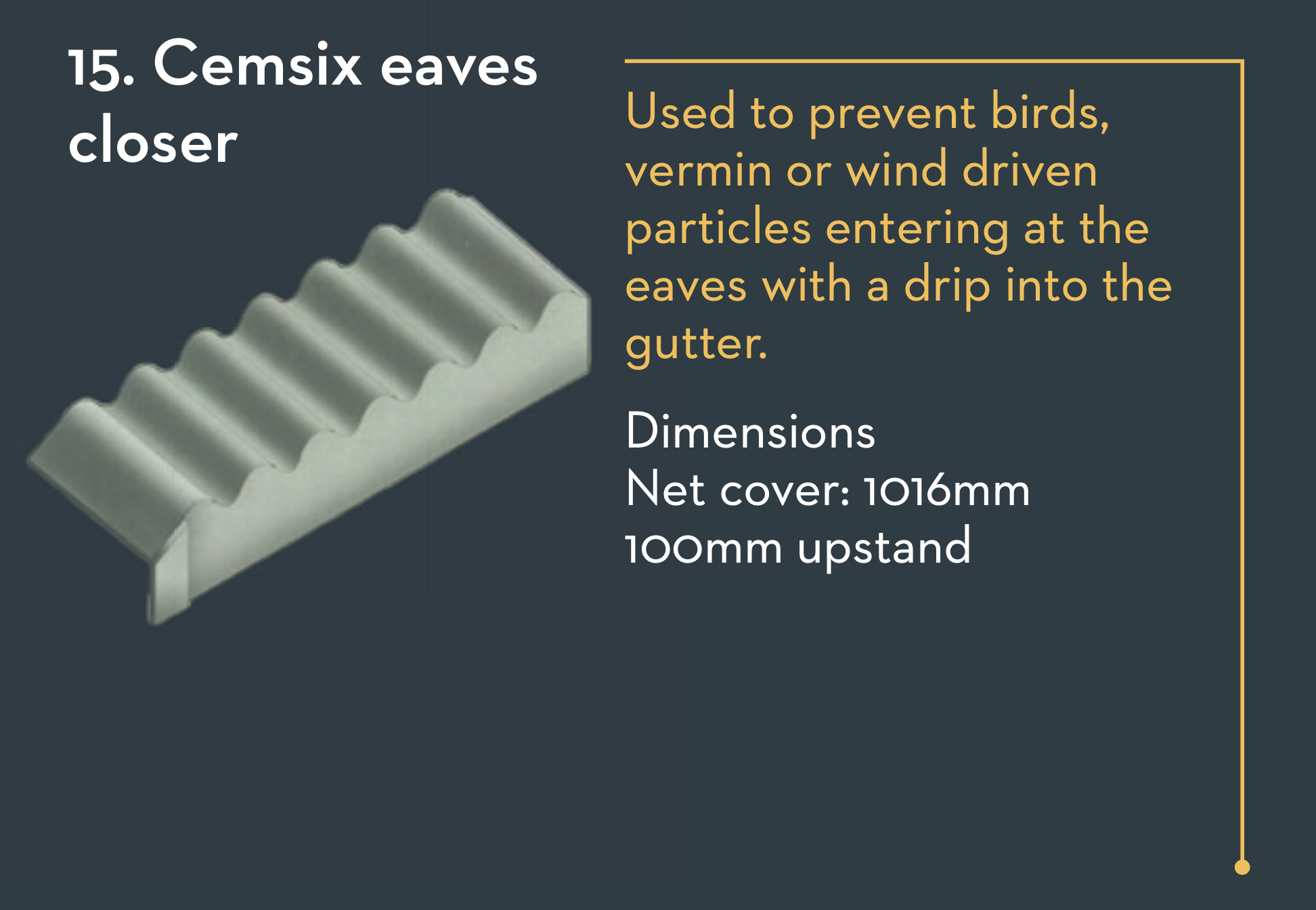

CEMSIX eaves closure

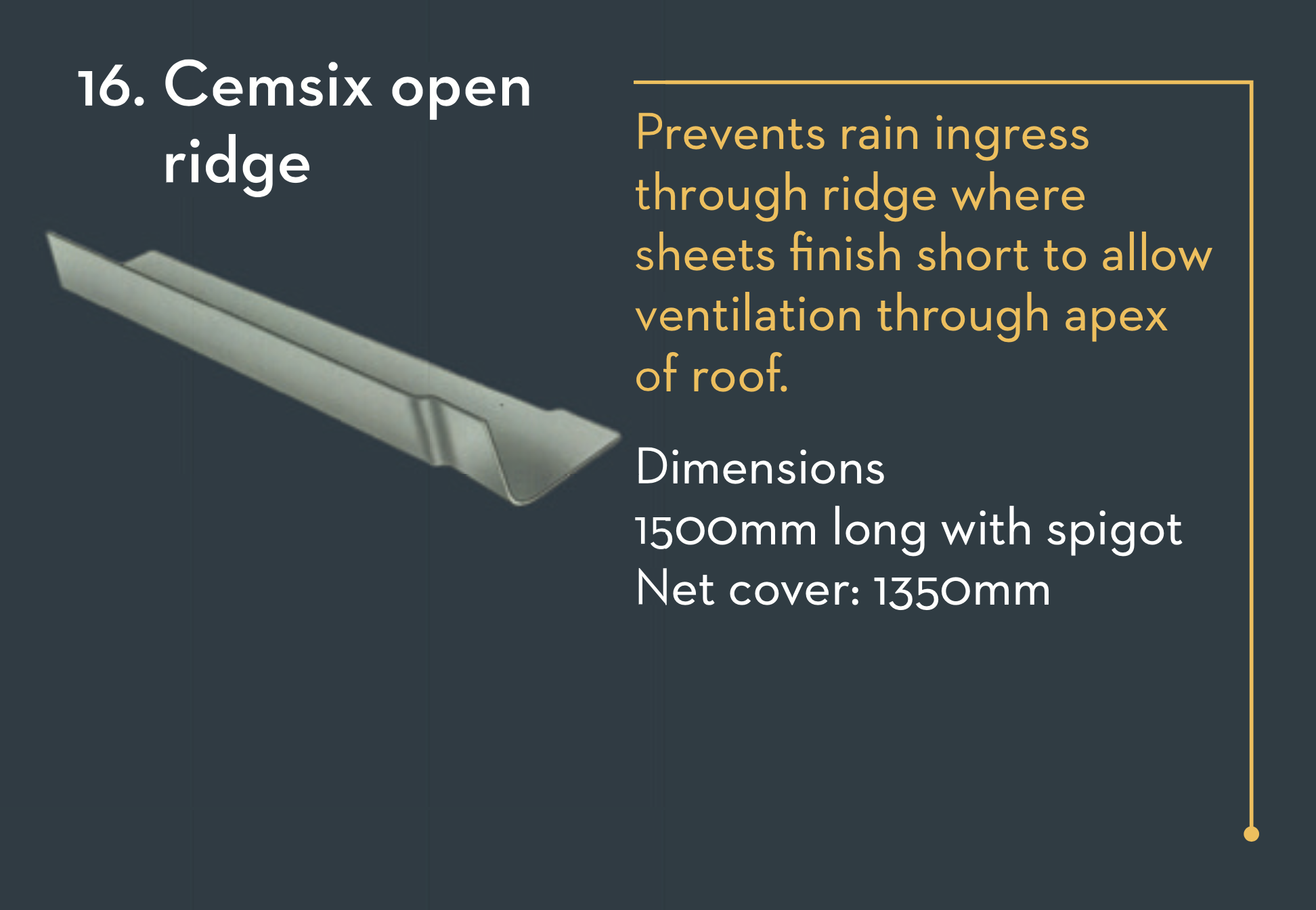

CEMSIX Open ridge
CEMSIX movement joint

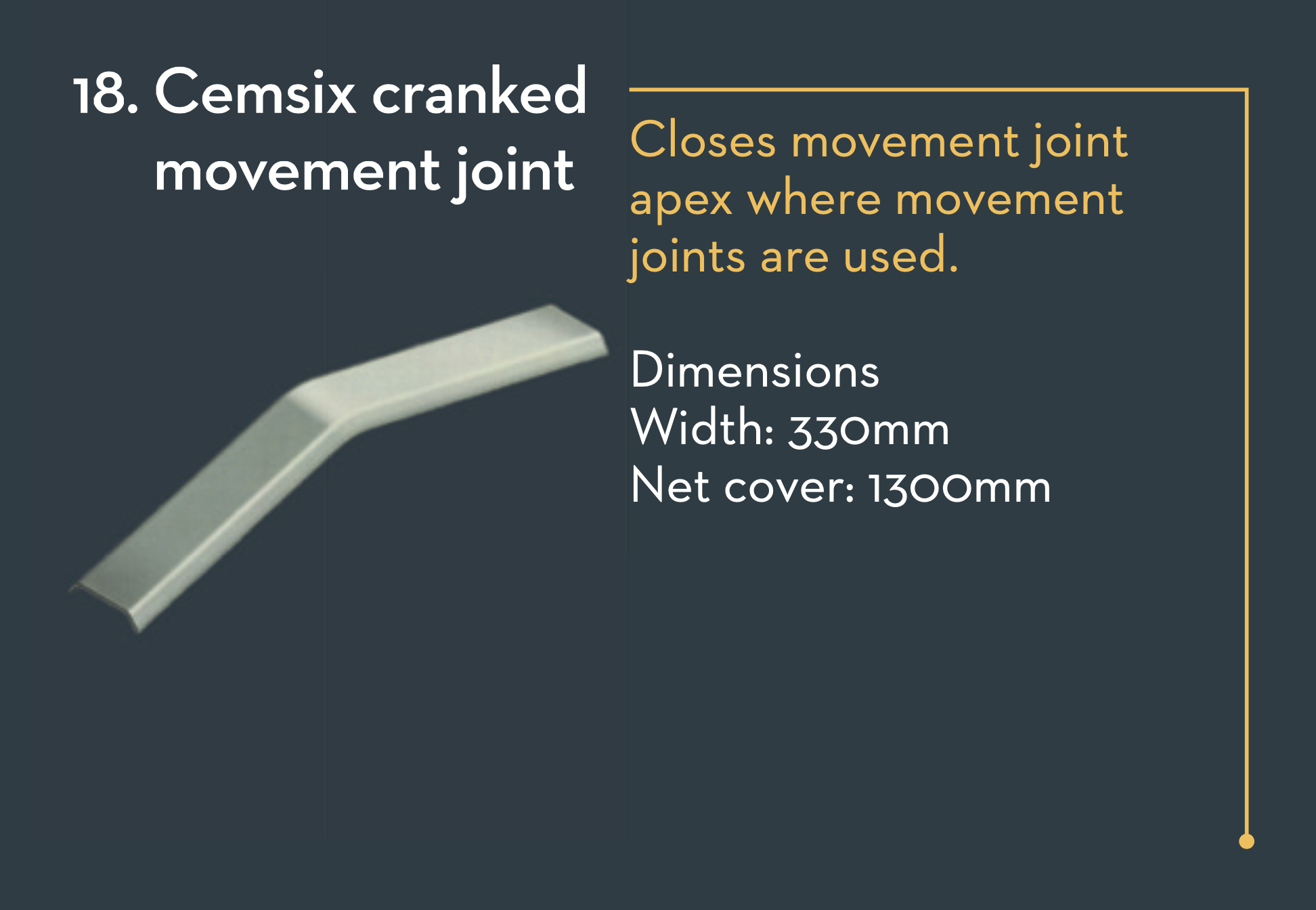

CEMSIX CRANKED movement joint
