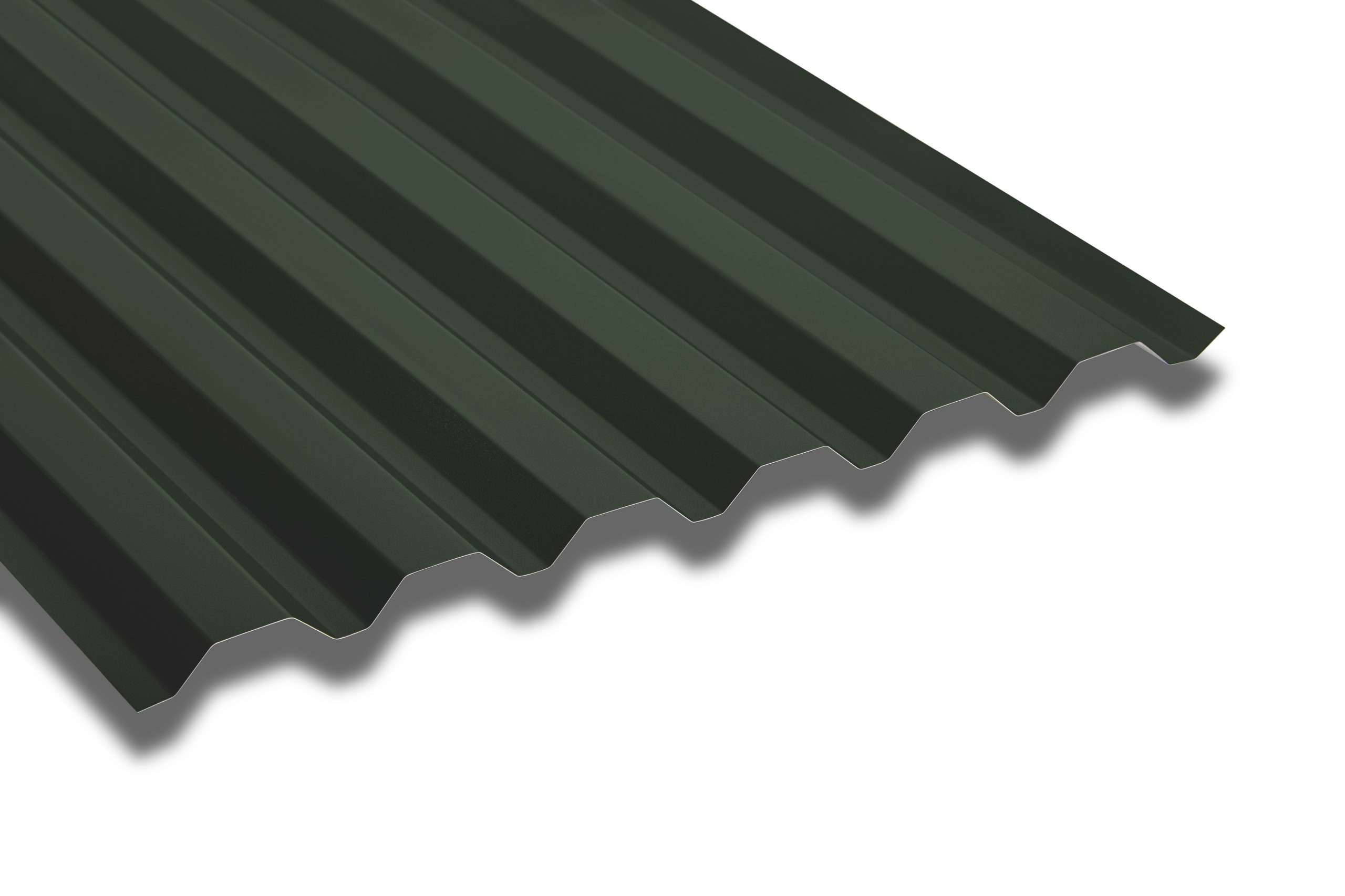

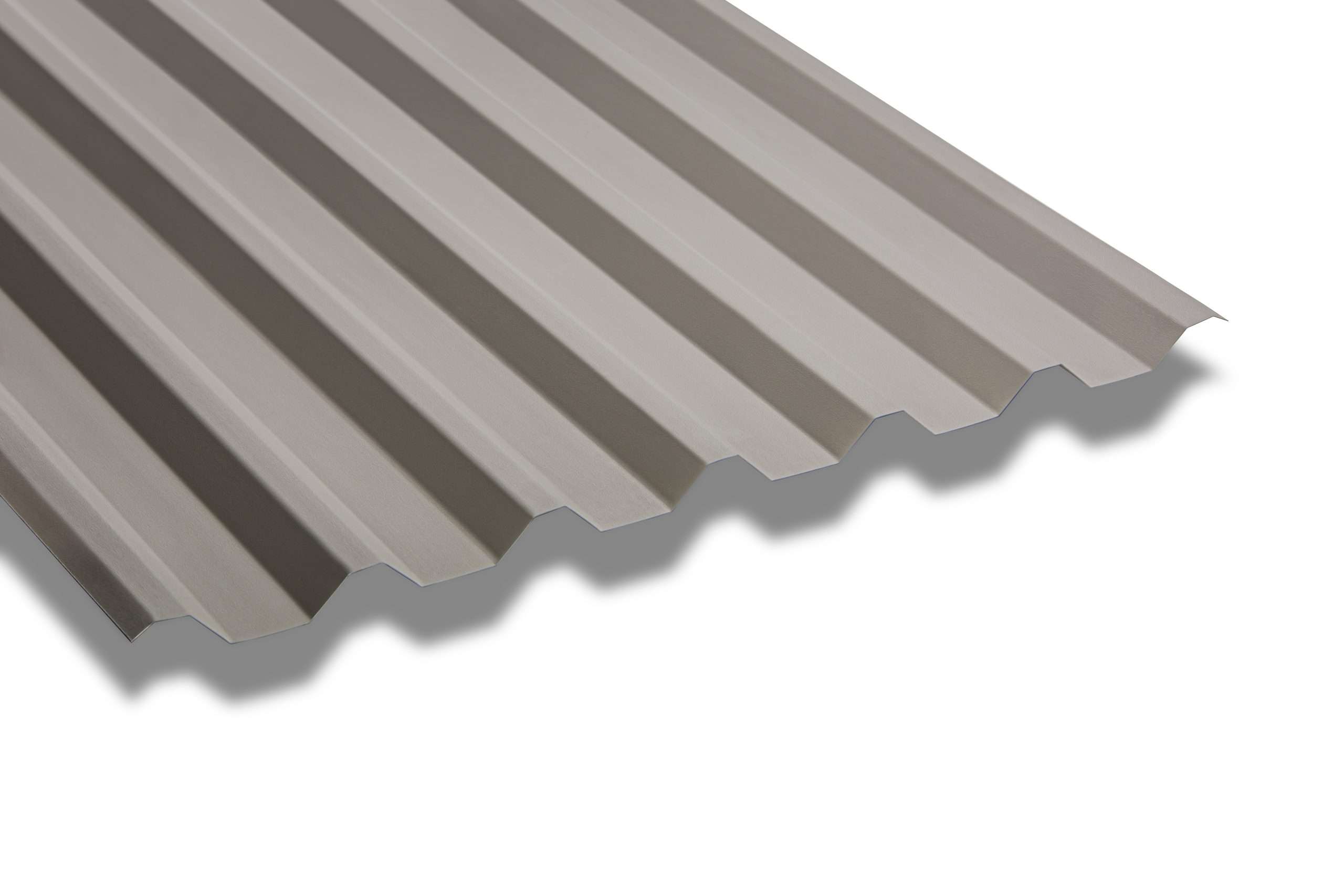

MCS Roofing™ makes Corrugated and Box Profile Sheets using high-quality sustainably sourced SSAB Greencoat® Steel. Our SSAB Greencoat® Box Profile Roof and Wall Sheets are available in 0.7mm and 0.5mm thickness featuring a Textured Mica Coated Finish.

SSAB GreenCoat®

Nordic quality steel for harsh weather and greener living: GreenCoat® colour coated steel for harsh weather and greener living. GreenCoat® is the brand for innovative, sustainable colour coated steel solutions for roofs, façades and rainwater systems. Widely used in sustainable architecture, GreenCoat® products offer an extensive range of colours and coatings with Swedish rapeseed oil.

Bio-based coatings made from Swedish rapeseed oil: Most GreenCoat® products feature a bio-based coating which uses a substantial portion of Swedish rapeseed oil instead of traditional fossil fuel oils. This unique, patented solution from SSAB reduces the environmental footprint significantly – and it makes the GreenCoat® colour coated steel product portfolio the market’s greenest offer for roofs and façades.

Fossil-free steel from SSAB, available by 2026: SSAB is a member of the joint venture HYBRIT project, which aims to revolutionize the steel industry with fossil-free steel by 2026. The result will be unique: the world’s first fossil-free steel making technology, with virtually no carbon footprint. The by-product from steel making process would be water, not carbon dioxide.

GreenCoat® Environmental Product Declaration (EPD): Today, the lifecycle perspective of products has become more and more important. As a result, documents need to give information addressing the lifecycle phases, product contents as well as the production and how to best recycle or re-use materials.

The GreenCoat® EPD is available to give you details about how we produce GreenCoat® colour coated steel and care for the product lifecycle.

Colour Disclaimer. Please note that although we do our best to make sure that the colours displayed on our website are accurate, the actual colours may vary due to inconsistencies with display monitors.

You may also need:

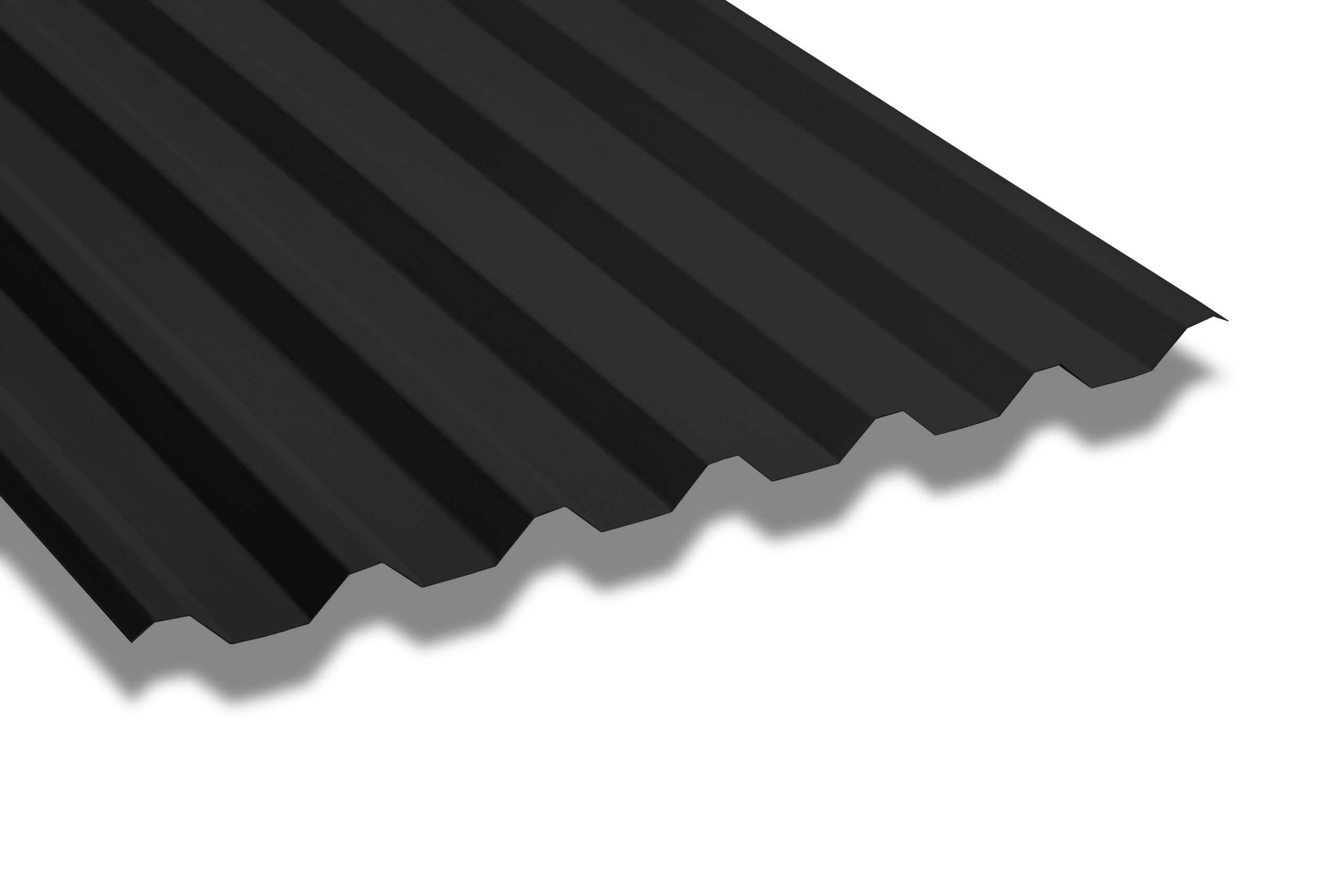

32/1000 ROOF PROFILE

• Max Length: 12000mm
• Min Length: 1000mm
• Min Pitch: 4º

---

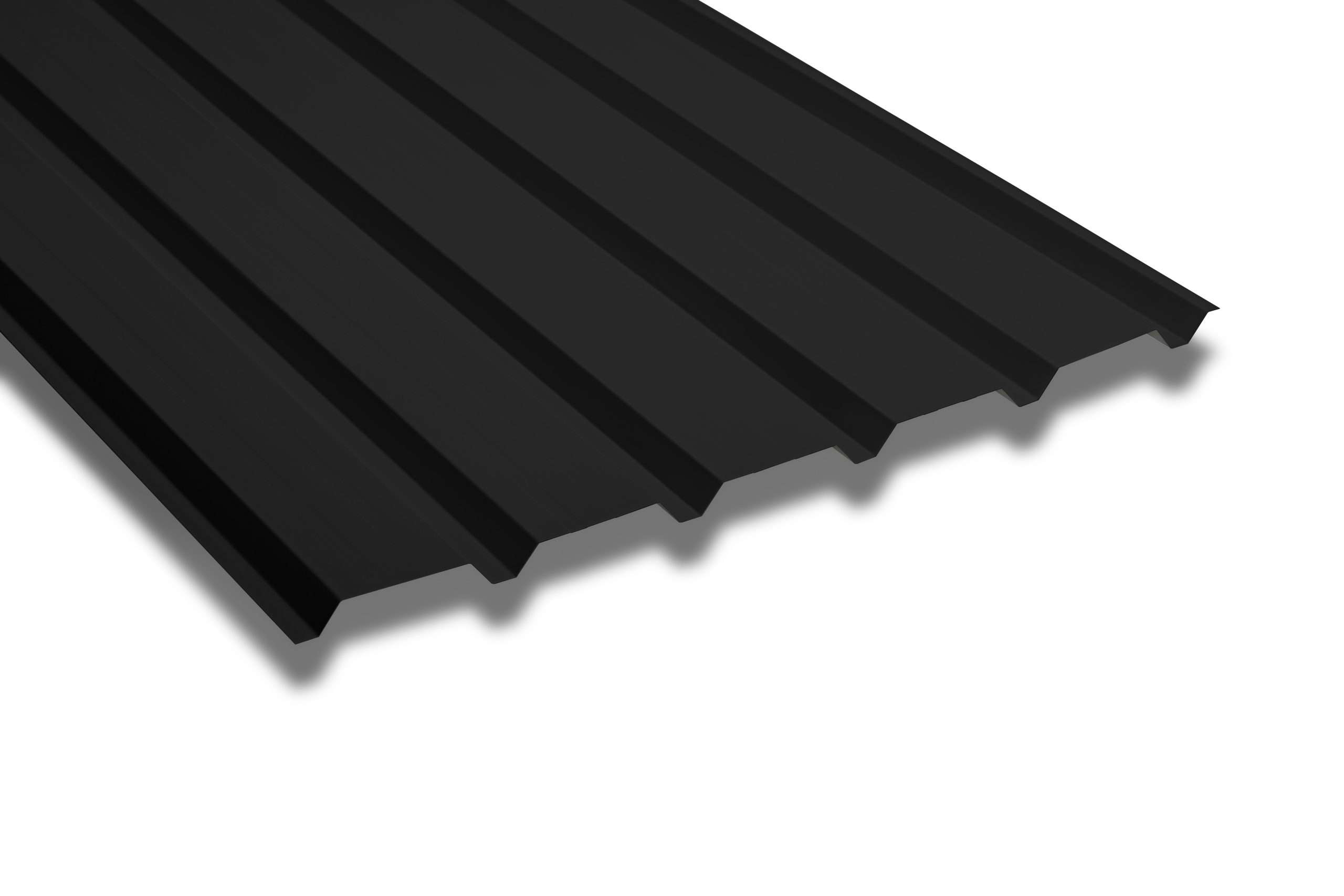

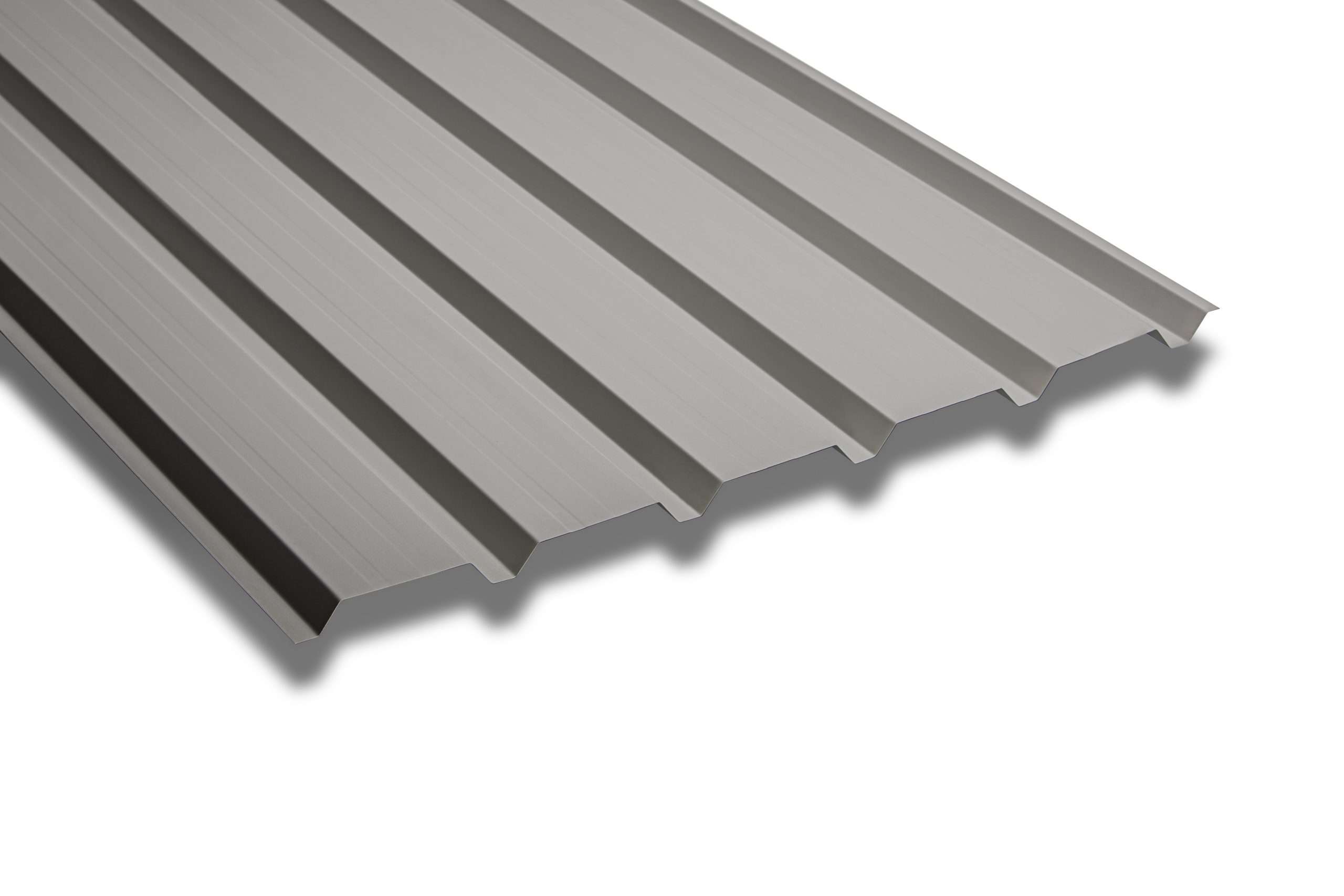

32/1000 WALL PROFILE

• Max Length: 12000mm
• Min Length: 1000mm

---

34/1000 ROOF PROFILE

• Max Length: 8500mm
• Min Length: 1000mm
• Min Pitch: 4º

---

34/1000 WALL PROFILE

• Max Length: 8500mm
• Min Length: 1000mm

---

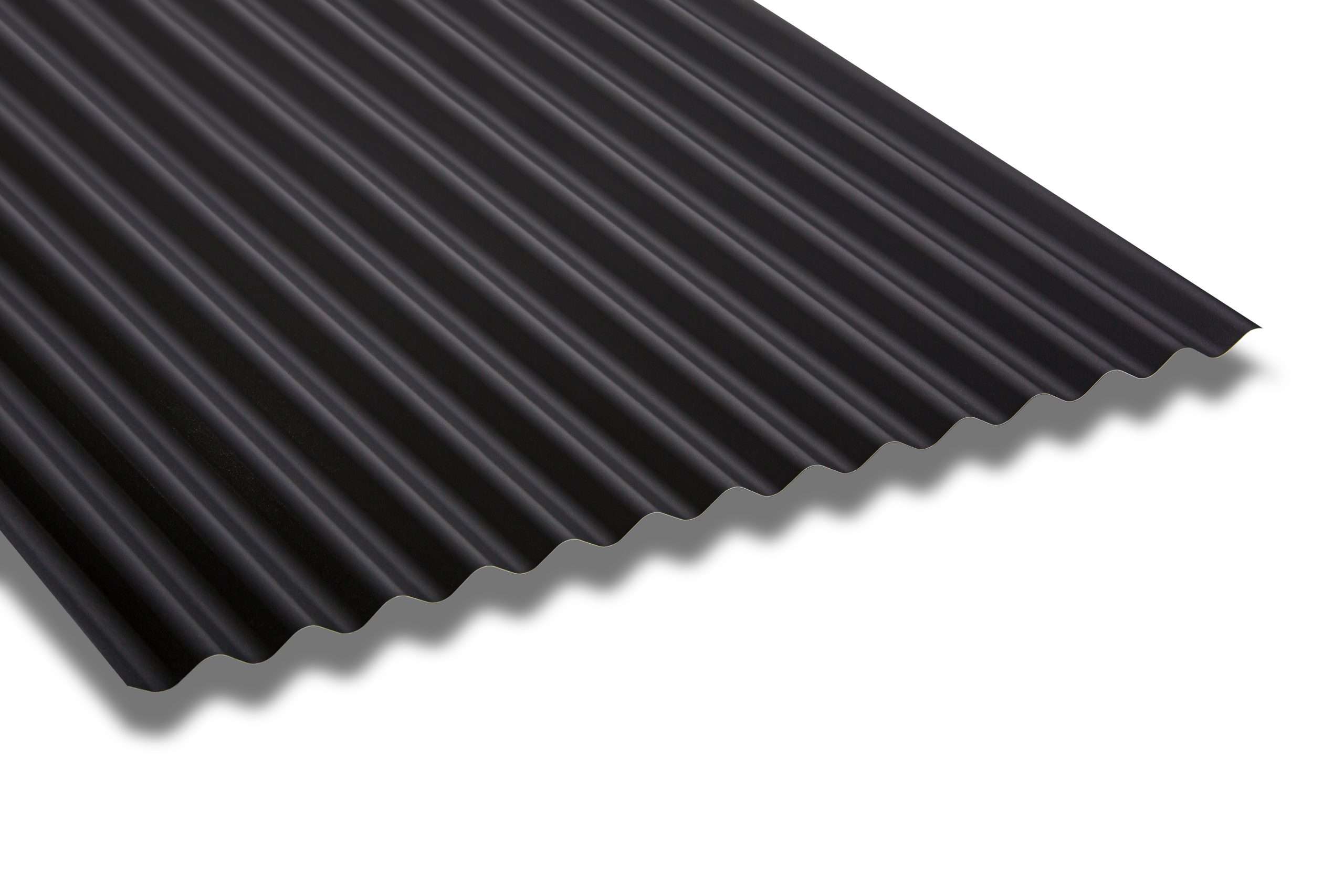

3″ INCH CORRUGATED

• Max Length: 8000mm
• Min Length: 1000mm
• Min Pitch: 10º

---

GOOSEWING GREY

---

ANTHRACITE

---

JUNIPER GREEN

---

DRIPSTOP®

---

Filc Dripstop® Anti-Condensation Membrane

Don’t let condensation from your metal roof cause the contents of your building to be rained on, Dripstop anti-condensation membrane is a cost-effective solution for preventing dripping caused by condensation. You can fight condensation without insulation and vapour barrier. When climate conditions cause condensation to occur, Dripstop absorbs and holds that moisture in specially designed pockets in the membrane. When climate conditions go back above the dew point, the moisture is released back into the air as normal humidity. Our roof and cladding sheets can be manufactured with the addition of a Dripstop backing. This is an easy process and is applied at the roll forming stage.

Advantages

In cases where liners and insulation are installed below the roof of a building, Dripstop prevents condensation from dripping down into the cavity between the new and old roof, without the need for additional insulation. On structures built for livestock, the layer of rubber between the membrane and the steel panel can help reduce corrosion and may prolong the life of a building. It is advantageous to use Dripstop for these applications because it is easy to clean, anti-microbial and hoses off or can be pressure washed. It is durable, and very difficult to cut or slice through. Reduces labour costs by eliminating one step of the building process, due to the steel roof sheets arriving onsite with the Dripstop already applied. Dripstop can also reduce rain noise.

Summary

• Prevents condensation dripping.
• Rubber adhesive backer gives it an extra layer of protection against contaminants that cause corrosion.
• Reduces labour costs due to the elimination of one step of the building process.
• Reduces rain noise.
• Durable
• Easy to clean, using a pressure washed if needed.

Installation Advice

We recommend heat treating the edges, eaves, and end laps for a couple of reasons. By itself, DripStop is resistant to mould and mildew. But as dirty rainwater runs down a roof, organic material can get trapped in the air pockets in the membrane. These organics provide food for mould and mildew to feed off and grow from. Besides hurting the appearance, this mould and mildew can spread once it takes hold. This can accelerate the second problem which is wicking moisture in the building. Glazing prevents the wicking of moisture back up which can slow the evaporation process. On end laps (panels lapped over each other from ridge to eave typically found in wider buildings where a single panel length is not possible), heat treating keeps the water from wicking in as it runs down the roof during rain or snow.

As an alternative, we recommend that during the roofing sheet installation process, any sheet that is overlapped in length, or any sheet that ends in the gutter must be varnished with a water-based lacquer or paint for at least the first 50mm. This is a simple and effective method of preventing capillary action.
